> Mastech linear dc power supply var 0-30 volt @ 0-6 amps
Mastech linear dc power supply var 0-30 volt @ 0-6 amps

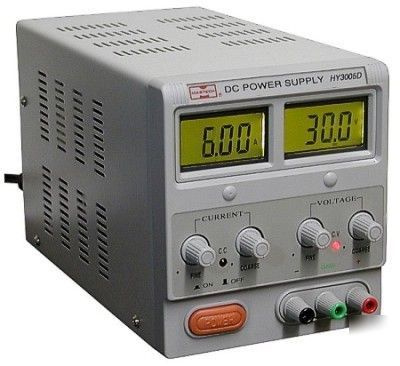

MASTECH HY3006D LINEAR VARIABLE DC POWER SUPPLY
DIGITAL BACKLIT LCD DISPLAY METERS
VOLTAGE: 0 TO 30 Volts + CURRENT: 0 TO 6 Amps
This is a very high quality variable voltage and variable current DC power supply. Excellent for lab, science projects, ham radio, car audio pretest or any other use where stable voltage up to 30 volts is required. The voltage is variable from 0 to 30 volts and the current is also variable from 0 to 6 amps. The dual digital LCD meters display the actual voltage and current within 2.5 percent.
The complete MASTECH HY3006D specifications:
* Output Voltage: 0 - 30 Volts @ 0-6 Amps
* Output Current: 0 - 6 Amps
* Constant voltage/ Constant Current
* Voltage and Current adjustment
* Power effect: CV<0.01%+1mV, CC<0.2% + 1mA
* Overload effect: CV<0.01% +3mV, CC<0.2% +3mA
* Waves and noises: CV<0.5mV r.m.s, CC 3mA, r.m.s
* Protection: High current limited.
* Ripple & Noise: <1mV rms( I>6A), CV<0.5mV rms( I < 6A)
* Operating Temperature: 0 - 102 F ( 0 -40 C), Relative Humidity: <90%
* LCD Accuracy is within + or - 2.5%
* Size: 11 1/2 x 6 1/4 x 5 1/3"
