Kramer vp-4X4 4X4 matrix switcher

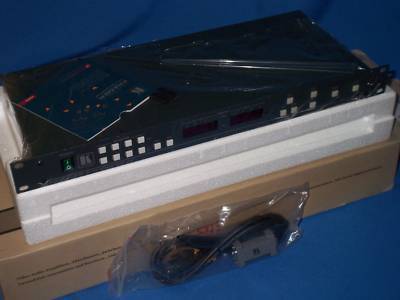

What you are viewing here is a new in box Kramer VP-4X4 4x4 Matrix Switcher.
This item was only pulled from the box to be photographed.
The Comprehensive/Kramer VP-4x4 is a four input four output matrix switcher, this unit accepts computer generated video signals and balanced stereo audio. It accepts signals with resolution up to UXGA and features professional functionality.
A bandwidth of 440 MHz allows the passage of high resolution signals up to UXGA.
If selected the audio will follow the video when switching.
The audio can break away from the video and be switched separately according to the user's application.
All functions can be accessed through the front panel or via RS-232 remote control on a PC.
Computer Generated Video x4, VGA to UXGA, RGBHV, on HD-15 connectors
Balanced Stereo Audio x4, on detachable terminal connectors
RS-232, on a multipin connector
Front Panel Touch Switches
12 VDC on a AC Power Adapter
