Cyberscan vantage laser non-contact inspection system
This is a used CyberScan Vantage Laser Based Non-Contact Inspection System
This CyberScan Vantage Laser Based Non-Contact Inspection System is in excellent condition
It came out of a working environment. I tested it and it works perfectly
I guarantee no DOA for 30 days after receipt.
* Software License for Windows 2000 Professional

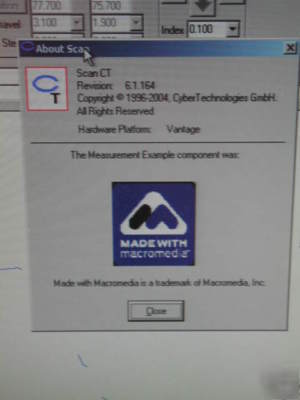

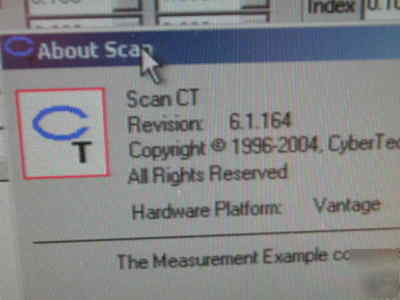

* Scan CT 6.1.164.5 CD and License (installed on the PC inside the Vantage unit)
* Vantage Getting Started Manual
* Printout of the Online Help
* 17 Inch NEC Flat Panel Monitor
* Power Adapter for Flat Panel Monitor
* Power Cord for the Vantage Base Unit

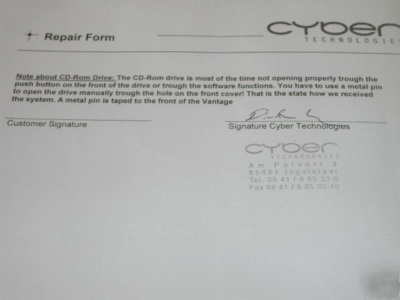

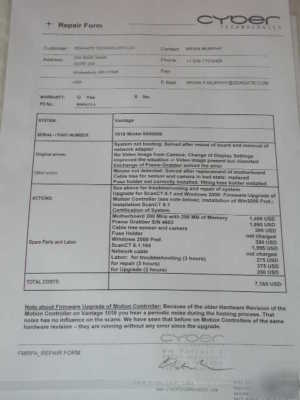

* This unit was sent back to Cyber Technologies for repair and upgrade in November of 2007. At that time, they upgraded the OS to Windows 2000, and the motion controller and installed ScanCT 6.1.164. The charge for the upgrades and repairs was $7165.00. At that time, the motherboard and the frame grabber were replaced. You can read about the upgrade here on the CyberScan web site.

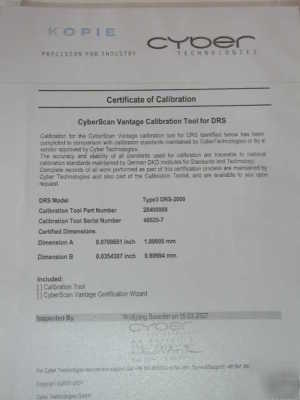

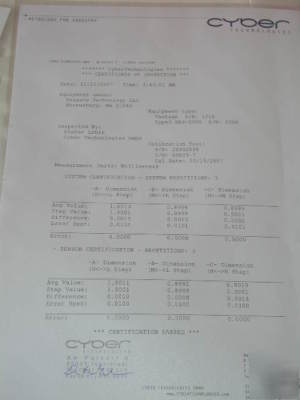

* The unit was Inspected and certified on November 22, 2007. A certificate is included with the unit.
* An invoice for the unit plus the repair costs is included as well. The invoice price of the Cyberscan Vantage system with DRS-200 Sensor and integral camera is $35,000.00. Add the repair and upgrade and the landed price is $42,165.00
* This unit is exceptionally clean. It was used in a very clean location and was used to drive heads at a manufacturer of computer hard drives (Not too hard to figure out what manufacturer that was).

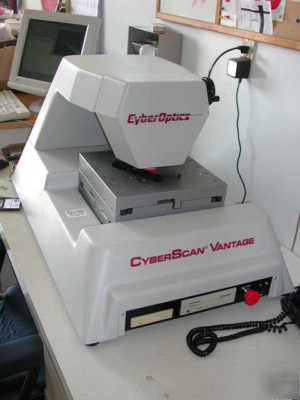

* Vantage Benchtop scanning unit with integrated system controller
* This unit has a DRS-2000 Laser Sensor ( TRIANGULATION SENSOR SPECIFICATION) with resolution down to 0.04 mils

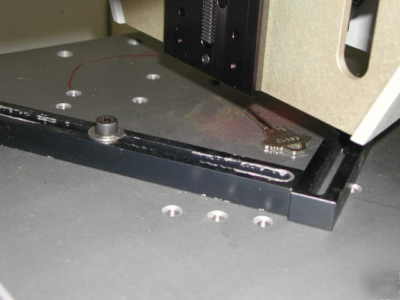

* 300 x 300 mm (12 x 12 in) x- and y-stage with linear encoders
* Integrated coaxial video camera for magnified view of the measurement site
* Cyber Technologies SCAN software including measurement functions, data analysis and graphical displays
* A link to the brochure for this system can be found here on the Cybertechnologies web site
* A link to the brochure for this system can be found here for the CyberScan Vantage 3D
* A link to a different brochure is here.

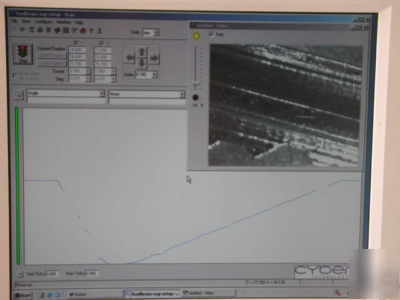

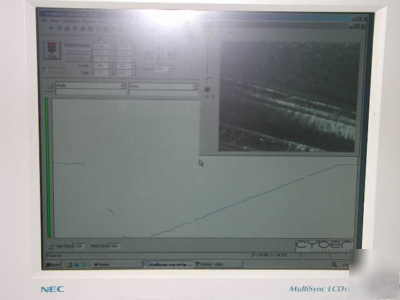

I guarantee no DOA. I played with this unit and you can see some of the pictures from it below.
For my info, 245 Lbs, (48" x 40" x 36")
Local pickup in East Longmeadow MA is possible, but you will pay 5% Mass State Sales Tax.
* CyberScan Vantageis a is a laser-based non-contact inspection system for scanning a target object. It combines proven laser sensor technology with computer-driven x-and-y translation.
* the Vantage offers comprehensive profile measuring and 3D analysis.
* Vantage Benchtop scanning unit with integrated Pentium system controller
* DRS, digital laser sensor with resolution down to 0.125 microns
* 200x200 mm x-and y-stage with linear encoders
* Integrated video camera for magnified view of the measurement site
* Cyber Technologies SCAN CT software for measure functions, data analysis and graphical displays
* Industrial Manufacturing -
* Precision tooling and dies -
* Weld, rivets, seal, seams - Membranes - Coatings - Foils - Gaskets
* Electronic Manufacturing - Thickfilm deposits - Solder paste - Epoxy Dots -
* Semiconductor parts and Wafers - Components (BGAs, QFPs, Connectors etc.) - Bumps
