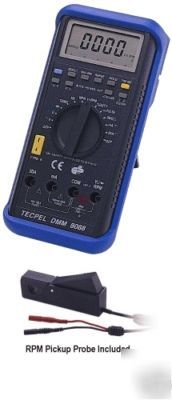

Automotive multimeter - tecpel dmm-8088
Automotive Multimeter - Tecpel DMM-8088 With features including overload protection on all ranges and inductive RPM pickup, this automotive multimeter (with temperature) is ideal for professionals and hobbyist alike. This robust multimeter offers Data Hold, Zero (relative readings) functions and comes complete with Test leads, Holster, Battery, Owners manual, K-type Thermocouple & Inductive RPM pickup probes.
* Auto-ranging on DC/AC volts, frequency, and capacitance.
* Resistance, diode and continuity test
* Inductive RPM pickup Included.
* Milliseconds pulse width to test on-time of fuel injectors, idle air control motors, and electronic transmission controls.
* Max/Min, Data Hold, Zero (relative readings) functions.
400mV,4V,40V,400V,750V +(2.0%+5dgt)
400mA +(1.0%+1dgt), 20A +(1.5%+1dgt)
400mA+(1.5%+3dgts), 20A +(2.0%+3dgts)
(Auto-ranging) 400 ohms,4k ohms,40k ohms,400k ohms,4000k ohms,40M ohms. +(2.0%+4dgts)
(Auto-ranging) 4nF,40nF,400nF,4uF,40uF.+(2.0~5.0%+4dgts)
(Auto-ranging) 100Hz,1kHz,10kHz,100kHz,400kHz. +(0.1%+4dgts)
-50 to 1100 C +(1.0%+2 C);-50 to 2000 C +(1.0%+4 C)
(Auto-ranging) 100Hz,1kHz,10kHz,100kHz,400kHz.+(0.1%+4dgts)
600 to 4000 low; 1000 to 12000 high
4,5,6,8 Cylinders +(2.0%+5dgts)
Open circuit voltage:0.4V DC, Audible threshold:<40?
1000VDC or 750VAC RMS for DC/AC Voltage;
0.5A,20A/600V Fused for DC/AC Current
60VDC or 24VAC RMS for temperature
500VDC or AC RMS for other ranges
* Inductive RPM Pickup Probe
* CA-600 DC/AC Current Clamp, 400Amp
