Agilent hp 1153A 200 mhz differential probe

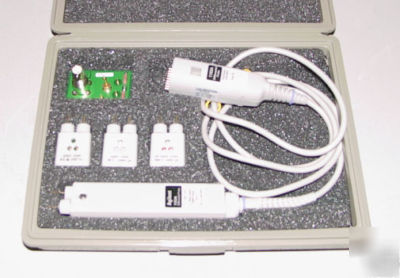

HP\Agilent 1153A 200 MHz Differential Probe
The HP 1153A is a 200 MHz Differential Probe for use with HP Infiniium Oscilloscopes. It is a 1X FET differential probe with 200 MHz bandwidth and 3000:1 CMRR (Common Mode Rejection Ratio). The probe has high-input resistance of 1 MOhm and low-input capacitance of 7 pF to minimize circuit loading. The 1153A is compatible with the AutoProbe Interface which provides power and completely configures the Infiniium Oscilloscope for the probe.
Input coupling modes include dc, dc with variable offset, and lf reject. Two attenuators, 10X and 100X, are provided to expand the linear differential input range to 30V.
