> Wheelabrator 6 station, 2 wheel shot peening machine
Wheelabrator 6 station, 2 wheel shot peening machine

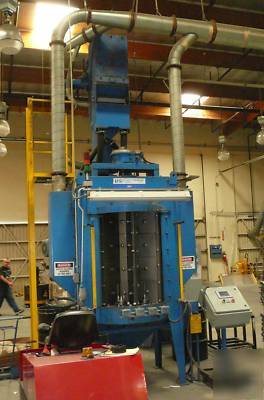

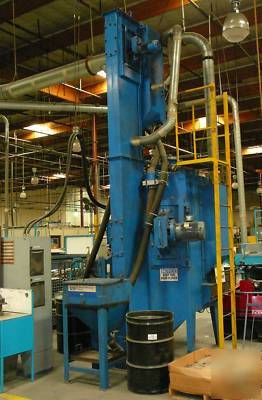

Wheelabrator 6 Station, 2 Wheel Shot Peening Machine W/ Less Than 8,300 Hours of Cycle Time:
* USF Surface Preparation Group of Wheelabrator is the Manufacturer
* Unit was $280,000 new and this package includes most major spare replacement parts (Listing Available Upon Request)
* Unit was in very good operating condition when removed
* Cabinet is fully welded and dust tight with integral hopper beneath blast chamber
* Main table is 60" in diameter, made of 1/2" thick steel with 3/8" manganese plate liners

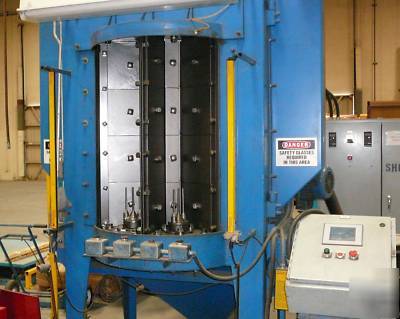

* There are 6 rotating satellite tables on the main table, each is 12" in diameterwith interiordrives; two satellite tables are loaded at one time
* Integral collection system collects shot and delivers it via conveyor to the shot storage bin
* Satellite table design can be modified to accept larger compartment sizesby removing the dividers
* Unit is equipped with automatic fill and bucket elevator from abrasive adder to short circuit shot recycling

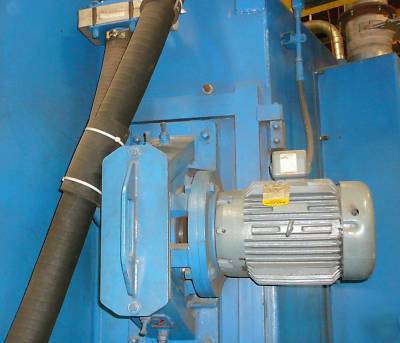

* There are two 12" shot delivery wheels, one upper and one lower, driven by 15 HP, 3600 RPM motors - motors are driven by Allen Bradley Variable Frequency Drives

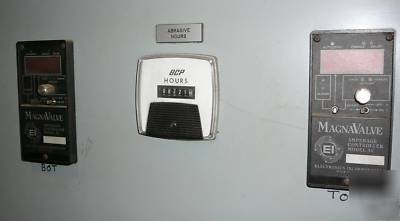

* Shot is regulated by Magna Shot Control, 250-P valves, and the valves are controlled by a PLC

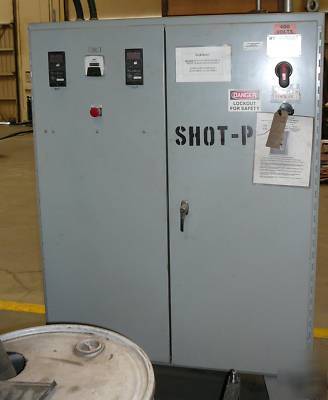

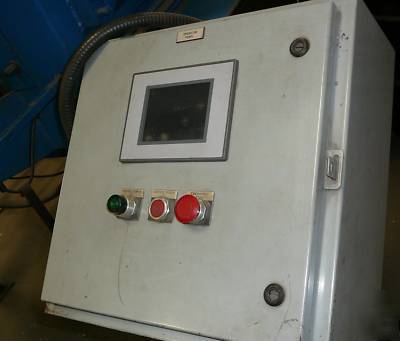

* The entire system is controlled by a PLC controller with screen monitor; controller unit accepts 6 menus
* Machine had a 3,500 CFM @ 8" S.P. dust collector attached - Not included
* Spare Parts list is available upon request - value over $10,000
