South bend lathe mica undercutting attachment

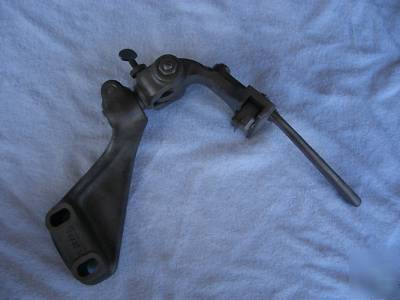

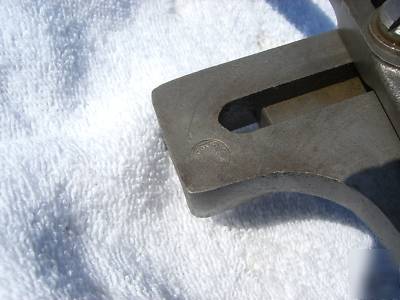

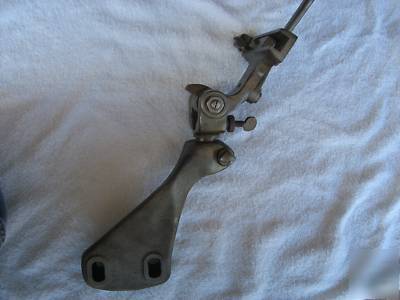

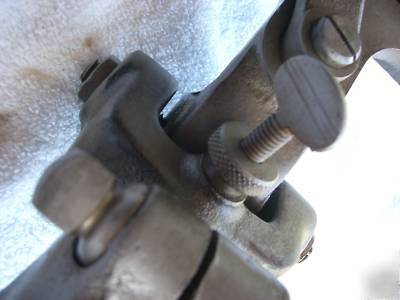

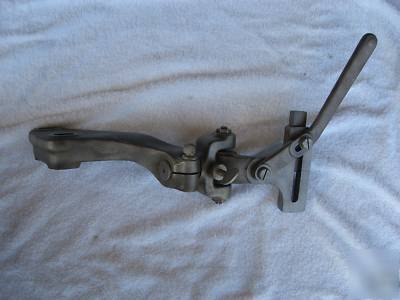

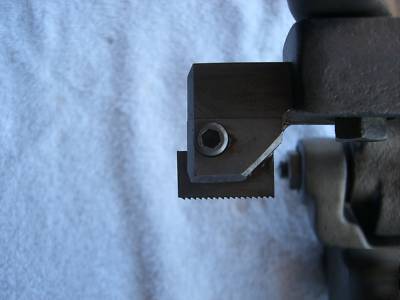

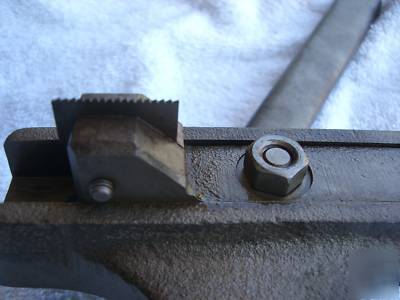

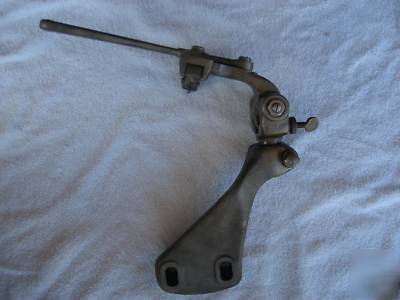

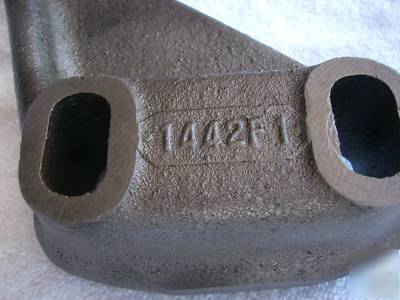

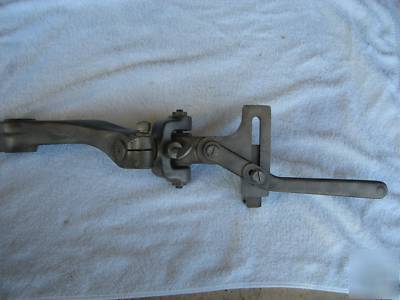

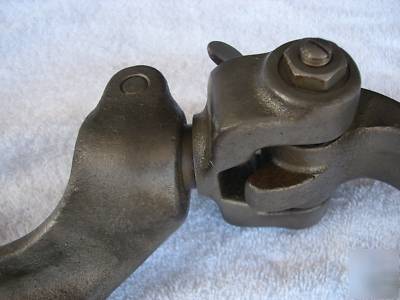

This is a South Bend Lathe Mica Undercutting attachment. It is used to clean up between the contacts on an electric motor after the copper is turned or resurfaced (turning the armature commentator). This is a very slick tool that is in excelent condition. The only signs of use are in picture 2 where some washers could have been used when mounting and in picture 3 there are some very light wear marks from the blade bar handle going through its motions. Has a nice SBL stamp on the top working surface. The blade is replaceable, and the depth of cut is controlled by the large thumb screw. Take a close look, this is a bare casting with no paint. I tried to show all angles and put the attachment through all its motions. The numbers in picture 2 indicate it is from a 14 1/2" lathe, but I believe that with a simple adapter block (not included), it could be fitted on many different sizes and makes of lathe. I have only seen two of these, this one and the one for my 10" machine. If you have any questions please feel free to ask.
