> Gi-15B GI15B microwave triode 2PCS
Gi-15B GI15B microwave triode 2PCS
GI-15B GI15B Microwave triode 2pcs

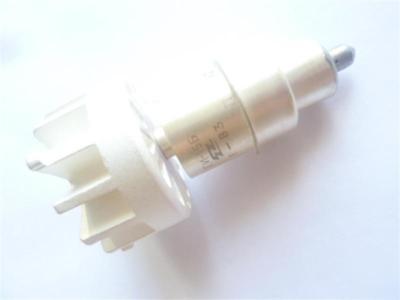

Microwave generator triode in metalloceramic reconstructions with an indirectly heated oxide cathode, and an external anode, designed for the generation and amplification of high frequency oscillations in continuous operation and pulsed with anode modulation at frequencies up to 3200 MHz in radio devices. Used air cooled to ensure acceptable temperature of the shell.
Basic parameters at Un = 12.6 V, UA = 0,4 kV, UA imp = 1,5 kV, Ia = 15 mA, l = 9 cm, t = 2 ms, pulse repetition frequency of 500 Hz
Filament current 0,815 0,065 A
Current Issue cathode (at UA = Us = 120 V) 3 A
The current net return (if UA = 0,3 kV, Ia = 25 mA) 5 uA
Leakage current between the grid and the cathode (at Us = 200 V) 10 uA
The slope characteristics of 10 2 mA / V
The voltage at the working point negative 3 4
Permeability (at change of UA 0,4 kV) 1,1 0,4%
in pulsed mode (with Un = 11,3) 90 W
in a mode of continuous generation (at UA = 0,8 kV, Ia = 100 m A, l = 9,3 cm) 3 W
Mezhduelektrodnye capacitance, pF:
