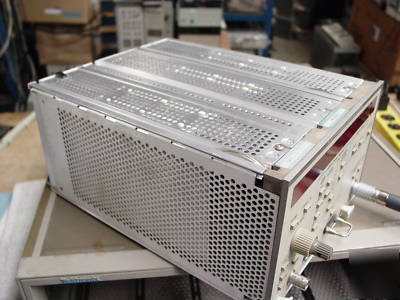

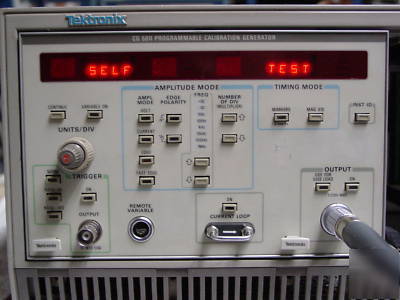

Tektronix CG5011 programmable calibrarion generator

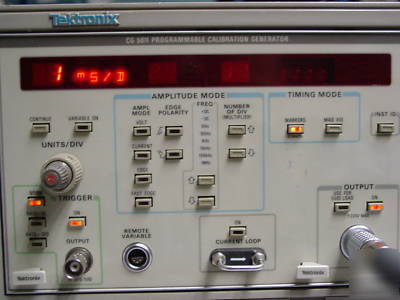

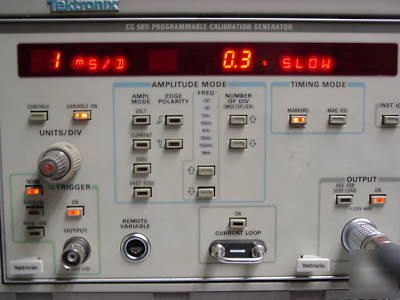

TEK CG5011 Programmable Calibration Generator
The CG5011 fully programmable calibration generator can be used in a computerized system for calibration and verification of all major oscilloscope parameters. The CG5011 is designed to cover both analog and digital requirements up to 2 GHz

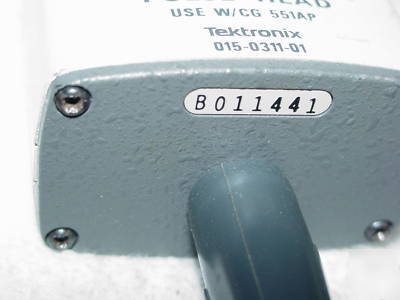

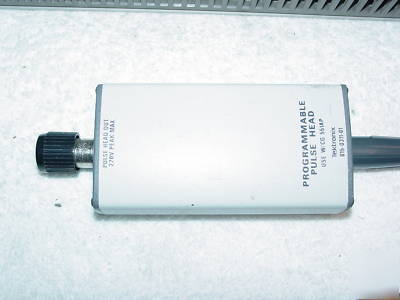

The standard cable is also included

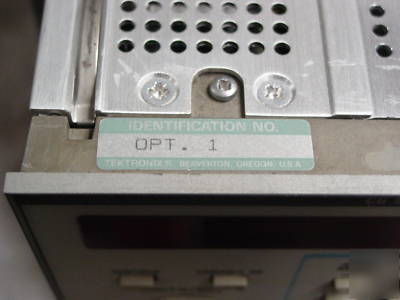

Option 1 Time Base High Stabilizer is included
The CG 5011 operates in five basic modes:

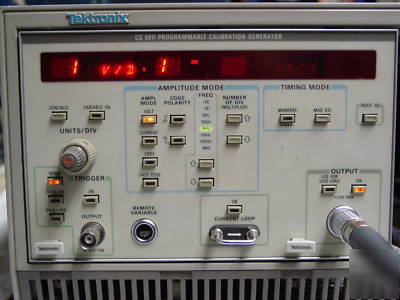

* VOLTAGE - as a voltage source it is used to check the gain accuracy of vertical and horizontal amplifiers.
* CURRENT - as a current source it is used to check the accuracy of current probes and amplifiers.
* EDGE - as a source of low distortion edges it is used to check the transient response of amplifiers and attenuator networks.

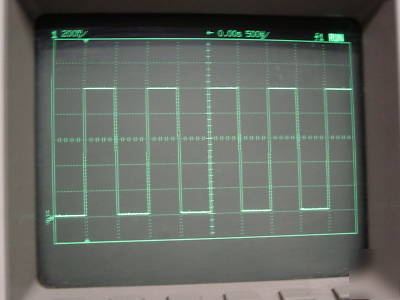

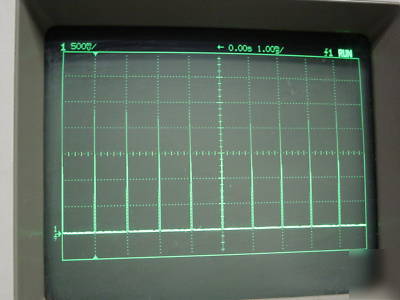

* MARKERS - as a time mark source it is used to check the timing accuracy of horizontal sweep rates up to10 ns/division. The CG 5011 has marks to 0.5 ns.
