Square d reactivar AV4000 power factor correction
Square D Reacti VAR AV4000 150 KVAR 180 Amps 60 hz

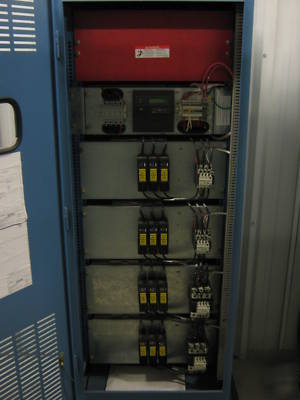

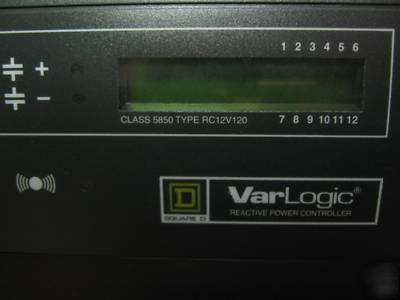

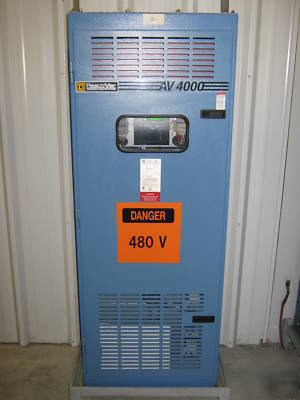

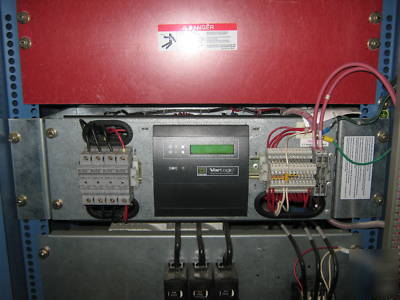

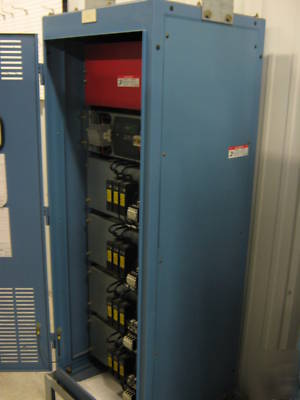

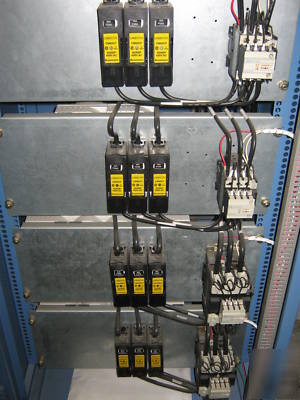

Square D, Reactivar, Type AV4000, 150 KVAR, Automatic Power Factor Correction System, Square D Class 5850 Type RC12V120

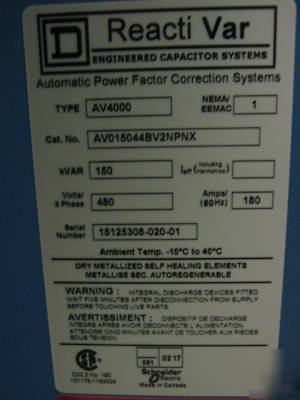

CAT # AV015044BV2NPNX, Serial # 15125308-020-01,
NEMA/EEMAC 1, 150 KVAR, 480 Volts, 3 Phase, 180 Amps, 60 Hz
This unit was removed from a working facility and is EXCELLENT CONDITION. Capacitor was installed in 2002 and was in operation until January 1 2010.
http://stevenengineering.com/Tech_Support/PDFs/45FAV4000.pdf
