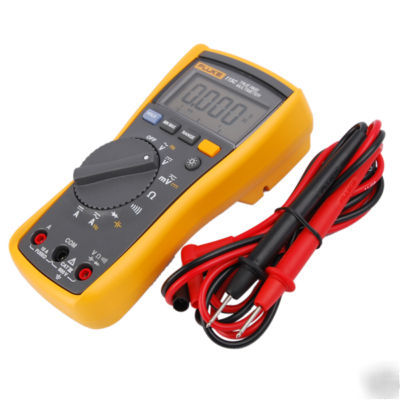

New fluke 115 115C true digitale rms multimeter
FLUKE 115 115C TRUE Digitale RMS Multimeter
Maximum voltage between any terminal and earth ground
6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
6,000 counts, updates 4 per second
33 segments, updates 32 per second
9 volt Alkaline, NEDA 1604A/ IEC 6LR61
([% of reading] + [counts]): 0.5% + 2
1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)
Beeper on < 20 , off > 250 ; detectsopens or shorts of 500 s or longer.
AC amps true-rms (45 Hz to 500Hz)
20 A overload for 30-seconds max
1) All ac voltage ranges exept Auto - V / Lo-Z are specified from 1% to 100% of range. Auto - V / Lo-Z is specified from 0.0V.
2) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage.
2) Frequency is ac coupled, 5Hz to 30 kHz for ac voltage
167 x 84 x 46 mm (6.57" x 3.31" x 1.82")
