> feeler 11"X18" high-precision lathe
feeler 11"X18" high-precision lathe
YOU ARE VIEWING A NICE FEELER 11" X 18" HIGH PRECISION LATHE. THIS IS BEING SOLD IN GOOD OPERATING CONDITION.

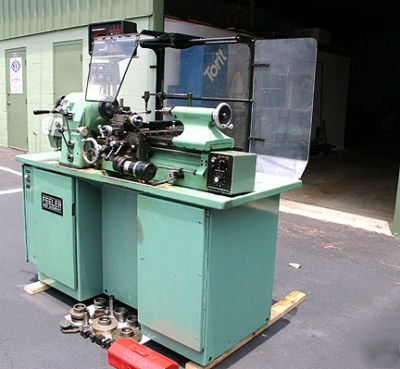

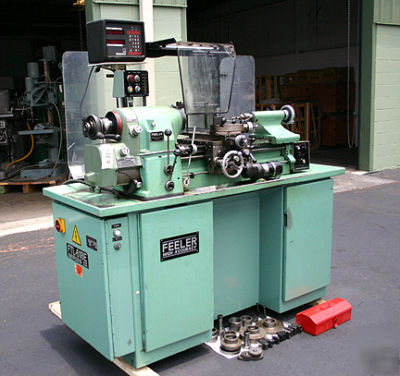

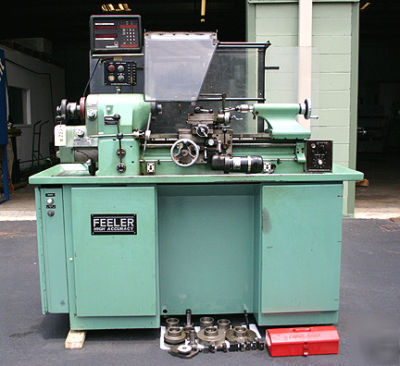

FEELER 11"x18" High-Precision Lathe
* Spindle Capacity with Round 5C Collets.................. 1-1/16"
* Spindle Capacity with Hexagon 5C Collets.............. 7/8"
* Spindle Capacity with Square 5C Collets................. 3/4"
* Spindle Capacity with Step Chucks........................... 1-1/16 - 6"
* Spindle Capacity with Jaw Chucks ........................... 5"
* Variable Spindle Speeds ............................................ 135 - 2955 RPM
* Swing over Bed ............................................................. 11"
* Cross Slide .................................................................... 6"

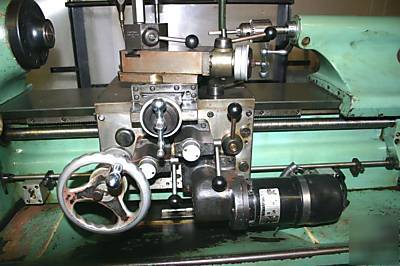

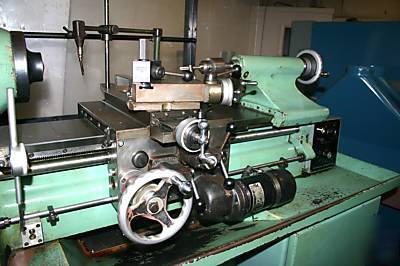

* Carriage .......................................................................... 9"
* Distance Between Centers .........................................18"
* Hole Through Spindle ..................................................1 "
* Compound Slide Travel ............................................... 3"

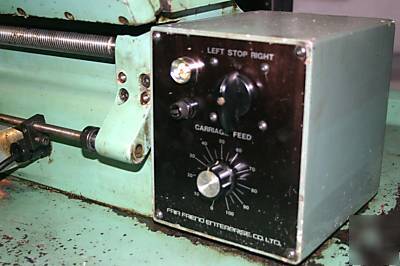

* Carriage Power Feed Range ...................................... 5/16" - 7 IPM
* Cross Slide Power Feed Range ................................ 3/16" - 4 IPM
* Tailstock Spindle Travel ............................................... 3 "
* Tailstock Spindle Taper ............................................... 2 MT
* Number & Range of Threads (27) ............................. Inch 11 - 108 TPI
* Approximate Weight ......................................................1,830 lbs

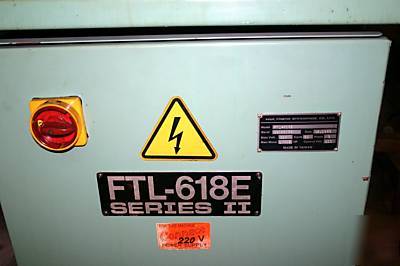

* Motor And Electrics ....................................................... 1.5 Hp 220V 3 Phase

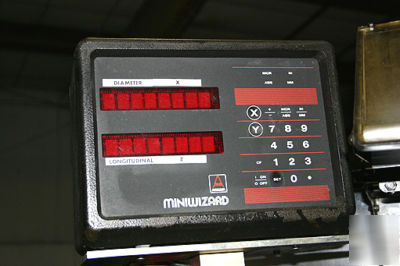

* Anilam MiniWizard 2 Axis Digital Readout

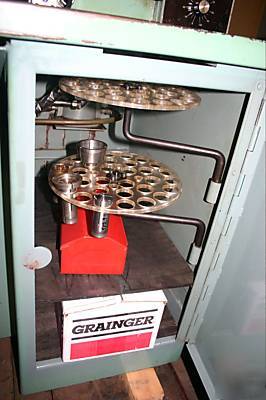

* 5C Collet Closer with Assorted 5C Collets

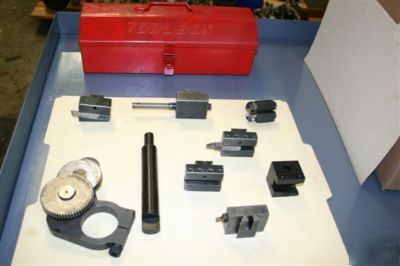

* Hardinge Fast Change Tool Holder with (7) Assorted Tool Holders
* Jacobs #6A Drill Chuck Center

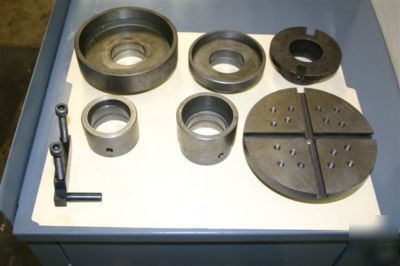

* (4) Step Chuck Closers: 2", 2" O.C., 4", 5 O.C."
