Watts 009QT 1/2 reduced pressure zone assembly backflow

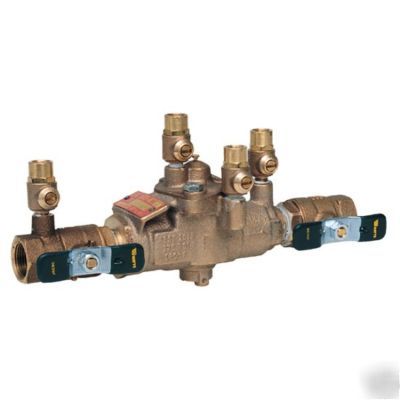

Watts 009QT 1/2 Reduced Pressure Zone Assembly
Series 009 Reduced Pressure Zone Assemblies prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure.
- It consists of bronze body construction (1/4 to 2 in.) or FDA approved epoxy coated cast iron (2 1/2 to 3 in.)
- two in-line independent check valves
- replaceable check seats with an intermediate relief valve
Series 009 is ideal for protection of health hazard cross-connections or for containment at the service line entrance.
Check with local water authorities for installation requirements.
Maximum Working Pressure: 175psi (12.06
