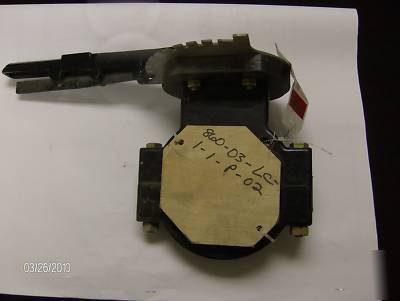

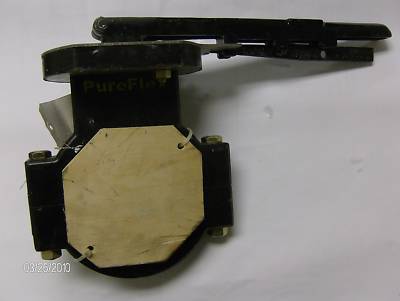

Pureflex series 860 size 3 butterfly valve
The 860 series valve body is manufactured from Durcor-62 , PureFlex proprietary advanced fiber reinforced composite. Durcor-62 has tensile and compressive strengths that rival steel along with outstanding impact resistance that is unmatched in the industry. Its reinforcing fibers are long and interlocked, this interlocked reinforcement system transfers loads throughout the fiber matrix, making the 860 series valve body virtually indestructible. The strength of Durcor-62 enables the 860 series valve to maintain ANSI face to face dimensions, be direct threaded for lug design and allows it to be installed in any type of piping system without the need for special considerations. Durcor-62 excels in temperatures from (-)60 F to 250 F and has only .001" of thermal expansion across its full temperature range.
800 Series Butterfly Valves Durcor-62 vinyl ester resin backbone provides excellent protection when exposed to aggressive chemicals and hostile atmospheres such as acid sprays, bleach, salt water and high chlorides. The 860 series valve body out performs ductile iron valves not only in corrosive environments but non-corrosive as well. Its lightweight advantage reduces the need for heavier support structures for hanging, eliminates the need for extra equipment and personnel for valve installation and reduces pipe strain once installed. The 860
series valve body is so dependable and maintenance free that we offer the industries first 5 year warranty against failure. Contact PureFlex
or your local distributor for details.
PureFlex 860 series valve take resilient seated butterfly valve technology to the nest generation in reliability. The valve is bubble tight at full rated pressure of 150psi, has triple stem seals for unmatched leak free dependability and it can operate at temperatures between (-)60 F to 250 F (consult factory for higher temperature applications). The 860 fiber reinforced vinyl ester valve body has a zero corrosion rate, the strength of steel with only the weight, and is virtually indestructible. The 860 series is used for shut-off, throttling and transfer of many corrosive and erosive fluids and has the purity required for ultra-pure and food applications.
