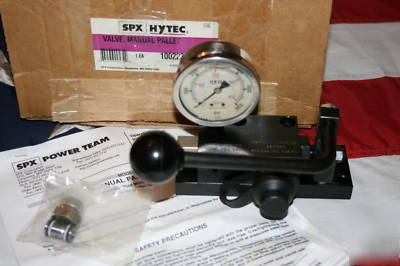

> New spx hytec 5000 psi manual pallet valve 100223 bnib
New spx hytec 5000 psi manual pallet valve 100223 bnib
Hytec Hydraulic Manual Pallet Valve
This valve allows the hydraulic power
source to be disconnected after the fixture
has been clamped. As the system is pressurized,
the valve automatically closes to maintain
pressure without manual intervention,
and a liquid filled gauge lets you constantly
To convert from conventional to manifold
mounting, simply plug the outlet and remove
the screw used to block flow to the base
plate port. A bushing is included to complete
Also included is the male half of a push-toconnect
flat face coupler (No. 100907) for
easy connection and no-drip operation. Hytec
pumps designed for use with this valve all
come with the mating female coupler half.
Self-locking feature helps prevent release
handle from actuating when coupler is not
attached. For double-acting systems, use
valve No. 100843 (see page 119).
Manifold or conventional mounting
Automatic locking release handle
