Alto-shaam 750-th/iii 208/240V

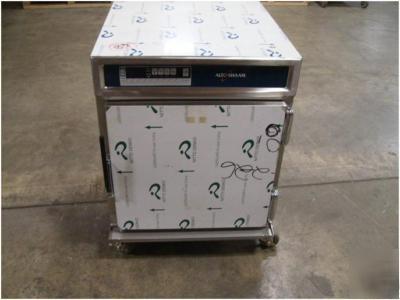

Single compartment oven with 20 gauge, non-magnetic stainless steel exterior and door with magnetic door latch. Oven

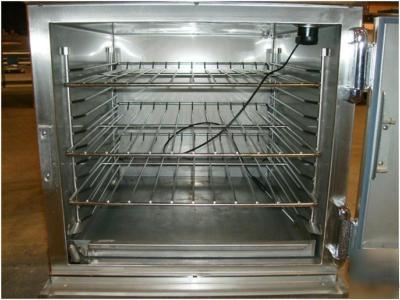

is equipped with two (2) stainless steel side racks with eleven (11) pan positions spaced on 1-3/8" (35mm) centers, three
(3) stainless steel wire shelves, one (1) stainless steel drip pan with drain, and one (1) external drip tray. Oven includes
one (1) set of 3-1/2" (89mm) casters 2 rigid, and 2 swivel with brake.
Electronic control consists of a 4 digit L.E.D. display, ON/OFF key; cook temperature key with an adjustable cook range
from 200 F to 325 F (93 C to 162 C); time control key with set-points from 1 minute to 24 hours; probe control key with
adjustable set-points between 50 F and 195 F (10 C to 91 C); and hold temperature key with an adjustable hold range
from 60 F to 205 F (15 C to 96 C). Control includes eight (8) programmable menu keys with locking capability along
with the ability to set individual cook and hold parameters; hold mode count-up timer, indicator lights for operation
status; and start key. The control has a built-in lock out feature and is equipped with a voltage conversion feature to
match the line voltage provided by the electric power supplier.
MODEL 750-TH/ III: Low temperature electronic cook & hold oven.
consistent cooking on a daily basis, low shrinkage of bulk or portion-cut protein
items, higher food moisture content, and significantly longer holding life.
Cooks, roasts, re-heats, and holds in the same cabinet with set-and-forget controls to
provide a better distribution of work loads.
COOK/HOLD/TIME/PROBE SET-POINTS). Reduces operational requirements to simply loading
the oven, pushing the power button, the preset menu button, and start.
Specify pass-thru doors as a special order.
Specify left-hand door as a special order.
Cooking thermostat limit set at 250 for restricted
Solid door is standard. Specify door with window
Up to Five (5)* 18" x 26" x 1" on wire shelves only
#9015 FOR APPLICABLE PART NUMBERS.
Pan Grid, Wire - 18" X 26" PAN INSERT PN-2115
26-5/8" (676mm) 26-15/16" (683mm)
35" x 35" x 50" (889mm x 889mm x 1270mm )
