Large stainless steel plate heat exchanger flat plate

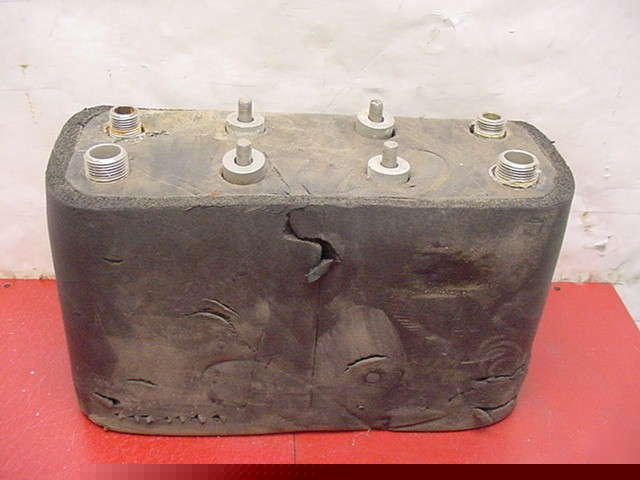

Large Stainless Steel Plate Heat Exchanger Flat Plate
* Flat Plate Stainless Steel Plate Heat Exchanger
* Designed Max Temp 350 Degree F
* Designed Max Pressure 450 PSI (31 Bar)
* Overall Dimensions Including Insulation But not The Ports 13-1/4 Inches Long x 6 Inches Wide x 8 Inches High
* Heat Exchanger Dimensions 4.9 Inches Wide x 12.2 Inches Long x 6.9 Inches High Not Including The Ports
* This Unit Was Removed From An Ellis And Watts LTL-10 Chiller. It Had Anti-Freeze Type Solution Circulated On The 3/4 Ports And City Water On The 1/2 Ports.
* Unit Has Been Flushed Out With Clean City Water. Further Cleaning May Be Needed Depending On Your Desired Use
