> Ingenico I6580 touchscreen & pin pad payment terminal

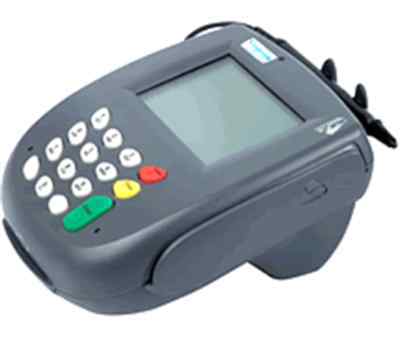

Ingenico I6580 touchscreen & pin pad payment terminal
THIS ITEM IS LIKE NEW. IT JUST HAS TWO MONTHS OF USE.
Proven, robust, intuitive and versatile user interface
The Ingenico 6580 offers a color graphical screen with electrostatic signature capture. The i6580 s glass screen has proven to be the most rugged and responsive surface for electronic signature capture available.
The integrated tactile keypad features responsive, brightly colored keys making PIN entry or any other keypad functions simple and fast. The keypad also has raised symbols to enhance usability for visually impaired consumers.
The i6580 s comprehensive array of communication support enables the terminal to fit in any host device, network or LAN environment.
Standard host communication protocols include RS232,
RS485, USB/powered USB, and Ethernet.
Resilient consumer and retailer security
PCI PED certified and Triple DES capable.
Requirements as well as all relevant ANSI standards regarding debit security.
Support for Triple DES, DUKPT and Master Session key management.
The i6580 s smart card reader is EMV 4.0 approved, offering optimal interoperability and security.
Glass, TFT color screen using capacitive technology with finger touch and electronic pen for signature capture. Glare resistant display is sealed to withstand accidental spillage of liquids with no damage to the terminal.
15-key tactile keypad meets requirements for the visually impaired Keypad privacy shield included Memory Standard 2MB RAM + 8MB Flash
EMV Levels 1 & 2 approved (4.0)
Multi-protocol support on host port: RS232, RS485, USB/Powered. USB RS232 support on auxiliary port Ethernet support
PCI PED approved ANSI standards include X3.92, X9.8, X9.9, X9.19, and X9.24. Code Authentication providing secure application code loading. DES and Triple DES PIN encryption. DUKPT and MasterSession key management
Unit can be powered from cash registers, powered. USB and standalone power supplies
19 x 15.8 x 7.6 cm (7.5 x 6.25 x 3 in.)
Uses the industry standard four programmable
LEDs to indicate power-on and successful read
Read Proximity Range of 0 4 cm (1.57 in.) Radio Frequency of 13.56 MHz. ISO14443 Type A & B with Mifare support. Power provided by the host terminal. RS232 communications to host Install in the field by simply replacing the foot of the terminal.
