Emco-maier 6-axis twin spindle cnc turning center

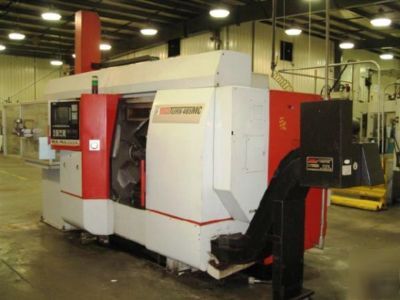

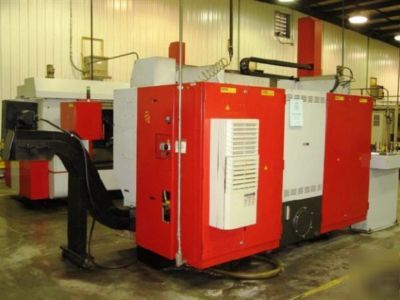

Emco-Maier 6-Axis Twin Spindle CNC Turning Center
Maximum Diameter Bar Stock............. 2.56"
Swing Over Bed, Maximum................ 14.5"
Turning Length ........................ 7.4"
Spindle Nose .......................... A-6
X-Axis Stroke ......................... 9.5"
Z1-Axis Stroke ........................ 7.4"
Z2-Axis Stroke ........................ 26.77"
Turret Index Time ..................... 0.1 Second
Toolholder ............................ VDI 30
Main Spindle Speed Range .............. 0-4000 RPM
Live Tool Spindle Speed Range ......... 0-4000 RPM
Left Spindle Drive Motor .............. 20 HP
Right Spindle Drive Motor ............. 15 HP
Live Tool Drive Motor Horsepower ...... 7.5 HP

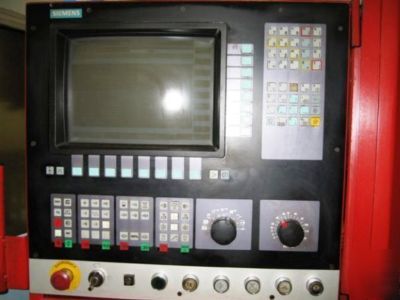

Siemens 840D 6-Axis CNC Control

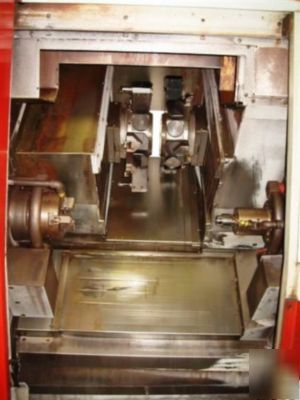

(2) 12-Position Turrets w/ Live Milling All Stations
7" 3-Jaw Chuck (Left Hand Spindle)
Collet Chuck (Right Hand Spindle)

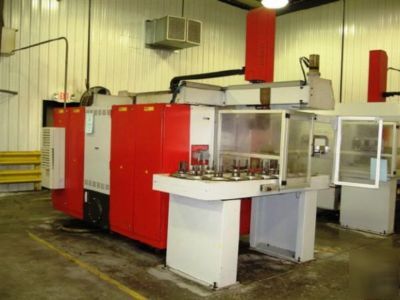

Automatic Gantry Loading System
