54 cubic ft. eirich pan mixer model de 22 item #8202
54 Cubic Ft. Eirich Pan Mixer Model DE 22

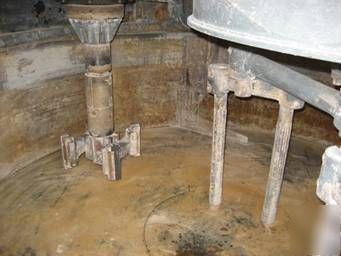

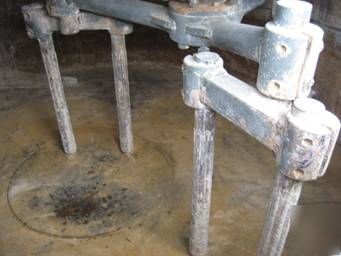

Eirich Pan Mixer, DE22, 54 cu ft working capacity. one(1) used Eirich Pan Mixer, Model DE22, Serial number 18683, built 1974. 54 cu ft working capacity, 80 cu ft total capacity. High Speed Rotor, 75 hp 230/460 voltage, driven by 8 V-belts. Pan Drive: 20 hp, 230/460 voltage. Mixing Star Blades: (2) 15 hp motors, 230/460 voltage. Discharge door, hyd. driven 3 kw, 230/460 voltage. All mounted on a steel beams. Approx pan dimensions: 7'2" diameter x 25" deep. Hinged access doors, along with hinged top door. Feed ports on top, along with dust vent. Overall dimensions are approx. 7'2" x 11'6" x 8'6" high.
