> Barksdale pressure transducer 425H3-15
Barksdale pressure transducer 425H3-15

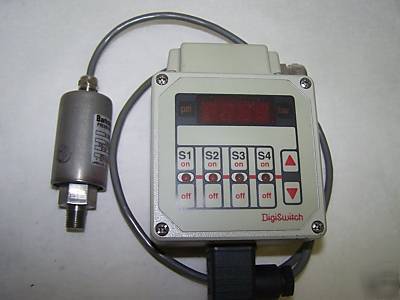

Barksdale 425H3-15 Pressure Transducer with Barksdale Pressure Switch PS3A-15 NIB Barksdale's 425H3-15 Pressure Transducer is a general purpose, industrial grade transducer, ideal for use in general industrial applications when a robust transducer is required. Wetted parts are constructed of 17-4PH and 300 Series Stainless Steel, with NEMA 4 enclosures constructed of 304 Stainless Steel. These units feature a stable, diffused silicon sensor, that achieves .25% accuracy. Pressure Range: 0-5,000 psig; 0-345 BAR Proof Pressure: 10,000 psig; 690 BAR Excitation: 6-30 VDC Output: 4-20mA Rugged Stainless Steel Enclosure Superior Surge Voltage Protection and EMI/RFI Immunity Built-in High Pressure Snubber Barksdale's Type UAS3 Solid State Trip Amplifier and controller is the perfect companion to any sensing device that provides a 4-20 mA or 0-10 VDC analog output. Our UAS3 offers the unique ability to switch four discrete circuits in a single, compact unit. In addition to its four SPDT relays, the UAS3 comes with a 4-20 mA analog output and a digital display with 1/2" tall, easy-to-read digits. Analog transducer outputs are scalable from 25% to 100% of the full adjustable range. Ideal Companion to Our 425-Series Pressure Transducers Four Switchpoints in a Single, Compact Unit Easy-to-Read LED Display with Scalable Bar Graph Monitors and Controls Any Sensor with Analog Output
