> Alto-shaam 7.14ES,dlx, 208/240V

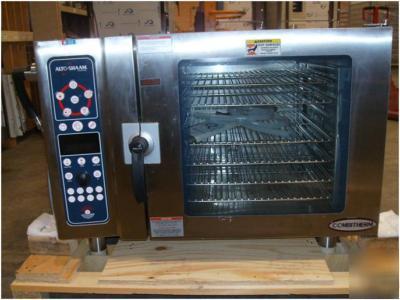

Alto-shaam 7.14ES,dlx, 208/240V
counter-top Model 7 14ES electric CombiOven designed with EcoSmart technology for reduced

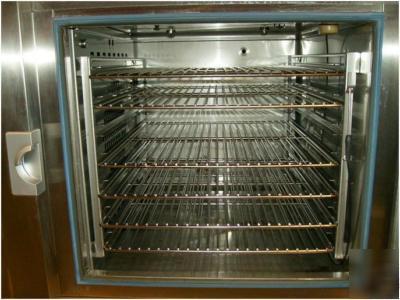

The oven is to accommodate up to 7 full-size sheet pans or 14 full-size hotel pans, and standard right-hand door hinging.
Seven (7) non-tilt pan support rails
(14) FULL-SIZE OR GN 1/1 PANS,
(7) FULL-SIZE SHEET OR GN 2/1 PANS
DUE TO ONGOING PRODUCT IMPROVEMENT, S P ECI F ICAT IONS ARE SUB J ECT TO CHANGE WI THOUT NOT ICE . 7 14ES DIMENSIONS: H x W x D
34-1/4" x 43-7/8" x 42-13/16" (869mm x 1114mm x 1087mm)
34-1/4" x 47-7/8" x 42-13/16" (869mm x 1216mm x 1087mm)
20-5/16" x 23-1/2" x 28-7/16" (515mm x 596mm x 722mm)
FULL-SIZE PANS: 20" x 12" x 2-1/2" Fourteen (14)
GN 1/1: 530 x 325 x 65mm Fourteen (14)
GN 2/1: 650 x 530 x 65mm Seven (7)
FULL-SIZE SHEET PANS:* 18" x 26" x 1" Seven (7)
at 208 1* 60 2 Wire plus ground 67.0 13.9
at 208 3 60 3 Wire plus ground 38.5/ph 13.9
at 380 3 50 4 Wire plus ground 21.5/ph 13.9
at 440 3* 60 3 Wire plus ground 20.0/ph 15.4
440-480 380-415 208-240 208-240
NOT AVAILABLE ON SMOKER MODELS OR STACKED COMBINATIONS
6 10ES OVER 7 14ES, STATIONARY
6 10ESi OVER 7 14ES, STATIONARY
6 10ESiN OVER 7 14ES, STATIONARY
7 14ES OVER 7 14ES, STATIONARY
7 14ESi OVER 7 14ES, STATIONARY
ES #435 - 01/10 W164 N9221 Water Street P.O. Box 450 Menomonee Falls, Wisconsin 53052-0450 U.S.A.
