> 12" x 48" thompson horizontal surface grinder
12" x 48" thompson horizontal surface grinder

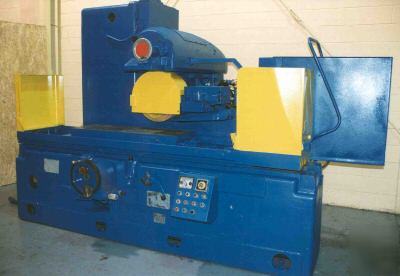

12" X 48" THOMPSON HORIZONTAL SURFACE GRINDER
SERIAL .............................. 4C667284
MODEL ............................... C
CAPACITY ............................ 12 X 48
HYDRAULIC TABLE TRAVEL .............. 10 TO 100 FPM
AUTOMATIC CROSS TRAVEL .............. 1/32 TO 1-1/2
INCREMENTAL DOWN FEED ............... .00025 TO .004
LONGITUDINAL TABLE TRAVEL ........... 56
POWER RAPID TRAVERSE................. 240 IPM
POWER SPINDLE ELEVATION ............. 15 IPM
DIAMETER OF WHEEL ................... 20
WIDTH OF WHEEL ...................... 8
HOLE IN WHEEL ....................... 12
MAGNETIC CHUCK ...................... 16 X 48 4-1/4
40 HORSEPOWER GRINDING WHEEL SPINDLE MOTOR
