10' x 3/8" htc hydraulic power squaring shear #25347

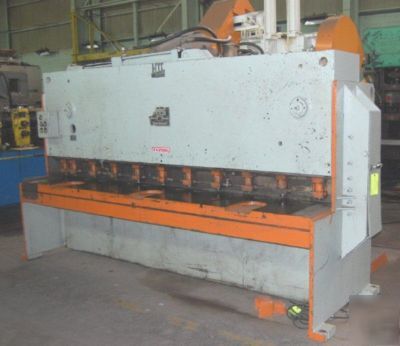

10' x 3/8" HTC HYDRAULIC POWER SQUARING SHEAR
New 1981, Serial No 1081T2339, Model 375-10A
36" Front Operated Power Back Gauge
Shearing Capacity, Nominal................ 10' x 3/8"
Distance Between Housings................. 10'4"
Rake, Taper Per Foot...................... .500 IN/FT
Strokes Per Minute........................ 33 SPM
Cycle Time, Full Width.................... 10 SECONDS
Cycle Time, Half Width.................... 15 SECONDS
Motor Horsepower.......................... 15 HP
Electrical System......................... 230-460/3/60
Overall Dimensions, L x D................. 12'2" x 4'6"
Overall Height............................ 7'3"
Weight, Approximately..................... 15500 LBS
PRICE: F.O.B. OUR WAREHOUSE.............. $19,500.00
