Omega rd-2010 function recorder mainframe

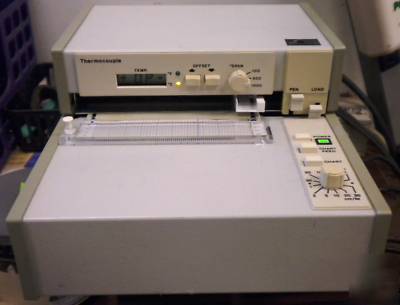

Omega RD-2010 Function Recorder Mainframe
with RD-TC Thermocouple Module

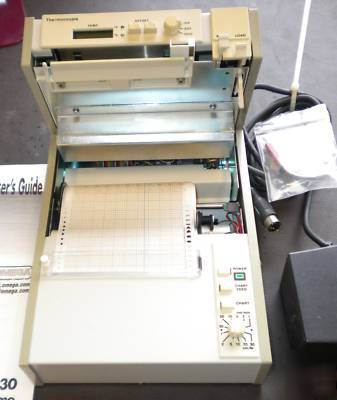

The RD-2000 Series Function Recorder System introduces low cost to modular recorders. With a choice of input modules, the RD-2000 can measure temperature from thermocouples, pH, millivolts/volts, or milliamps. To select any input type, simply plug in the appropriate module. The mainframe recorder is available in three varieties: a one-pen model with a 100 mm (4") chart, and a 200 mm (8") chart model with either one or two pens. With the two-pen model, you can record two completely different input signals, such as temperature and pH, or have two channels record the same type of input signal. Designed for ease of use, the RD-2000 system has all user controls on the main control panel. Select one of 12 chart speeds [from 1 cm/hr to 30 cm/min, (0.39"/hr to 11.8"/min)], chart feed, chart start/stop power and pen lift. For easy paper loading, the control deck unlatches and swings away to reveal the paper feed spindle. A roll of chart paper is dropped into place, and the deck is then lowered and latched.

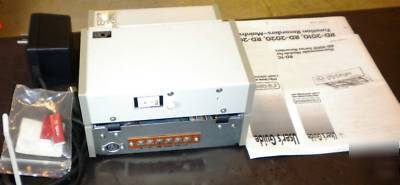

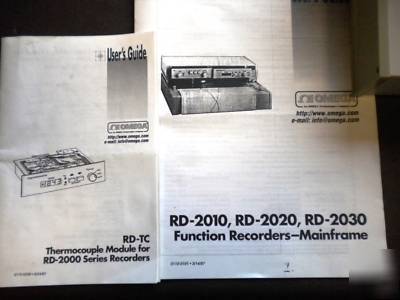

Like new Unused Condition: Manuals / Power Supply / Ink Pins all included
RD-2010 Function Recorder Mainframe
http:// /manuals/manualpdf/M0455.pdf
http:// /Temperature/pdf/RD2000.pdf
