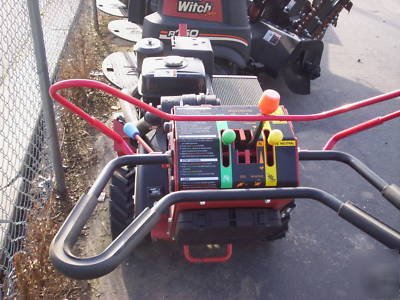

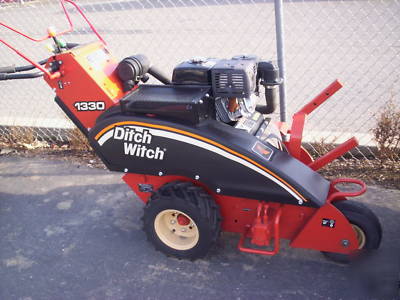

New ditch witch 1330 walk behind trencher
Brand New Ditch Witch Trencher, Model 1330. Will arrive to you with a New 30" depth boom and 4" X 30" digging chain installed on the machine ready to go to work.
Ditch Witch model 1330, self-propelled, hydraulic, walk-behind, manually steered, two-wheel drive, rigid frame, chain-type trencher
Centerline trench to outside edge of machine, left
Centerline trench to outside edge of machine, right
Trencher cleaner type: Mechanical
Operating weight (based on roller boom and narrow-width digging chain)
Ground drive transmission: Hydraulic two speeds, infinitely variable from zero to maximum, gearbox to axle, speed and direction controlled with single lever
Pump drive: Direct drive from engine
Digging chain drive: Lever operated, one speed forward and reverse
Trencher drive: Hydraulic direct drive
Digging chain: 33,000-lb (15 000 kg) or 35,000-lb (15 875 kg) test
Chain drive sprocket: Forged and tempered
Filtration: Return flow, 10 micron nominal
SAE cold crank @ 0 F (-18 C): 210 amps
*Dimensions are based on standard tires and standard boom, unless otherwise noted.
