Clarostat potentiometer #392-5; 5K ohms; "13 pc. lot"

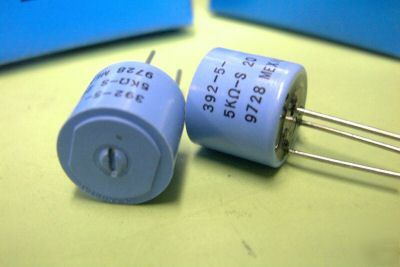

Clarostat "Single-Turn" Trim Pot
Sale is for a "13 pc. LOT" of this item
A "Series 92" Clarostat Trimming Potentiometer; 5 Kohms with a 20% linear taper tolerance. This is a "Thru-Hole" design, with solder-tinned terminals. They meet flow solderability and washability test requirements.
Sealed-Shaft is standard! Made in accordance with MIL-R-94.
This device is 0.5 watts rated at 70 deg C., derated linearly to 0.0 watts at 120 deg C.
Electrical Rotation is 295 +/-5 degrees, with Effective Rotation of 265 degrees +0/-5 degrees. End resistance is 4 ohms maximum.
Maximum initial Noise Level of 1.5% of total resistance.
The housing is Thermoplastic Polyester, Blue in color (UL SE-0 rating).
Operational Temperature Range is -40 to +125 Deg C.
Rotation Life is 50,000 cycles.
Thanks for looking and visit our store again soon!
