> BRUDERER22 ton automatic high speed press
BRUDERER22 ton automatic high speed press

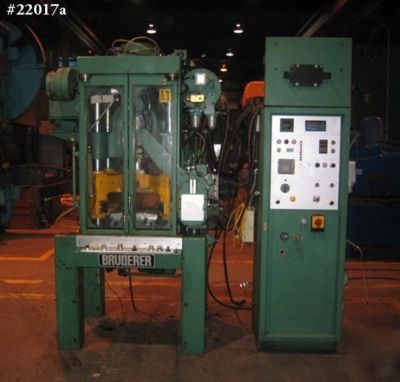

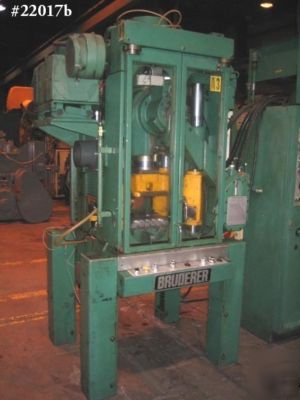

USED 22 TON BRUDERER AUTOMATIC HIGH SPEED PRESS
(4) Pillar Type Model No. BSTA-22-E
AIR CLUTCH & BRAKE Stroke: 1.5" (Adjustable) Slide Adjustment: 1.97" Shut Height S.D.A.U.: 7.12" - 9.09"
Area of Bed: 22" L-R x 15.75" F-B Opening in Bed: 14.17" L-R x 6.7" F-B Area of Slide: 21.75" L-R x 10.75" F-B
Maximum Strip Width: 6.3" Strip Height: 1.97" - 4.72" (Adjustable) Feed Length: 0 - 3.35" (Adjustable) S.P.M. Approx.: 100 - 1800 S.P.M.
Floor to Top of Bed: 35" EQUIPPED WITH: Bruderer Model 190/85 Precision Roll Feed - Right to Left Feed

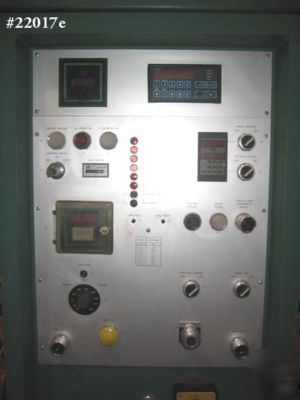

Bruderer Free Standing Control w/Push-Pull Button For Start -Stop - Dual Pushbuttons For Ram Start -
Continuous Stroke Key Selector Switch For Control Off - On - Start Selector Switch For Strip End - Control Off-On;
Blow Off-On-Off Pushbuttons For Start - Stop Bruderer Digital Inching & Hour Gauges Speed Control Knob For Slower-Faster
Digital Piece Counter Gauge With Setting Control Machine Mounted Control With Pushbuttons For Ram Start - Stop -
Continuous Stroke Key Selector Switch For Inch - Single Stroke - Continuous - Stroke Adjustment & Ram Adj.
Automatic Oil Lubrication 20 HP 3000 RPM 340/440/60 V/S Motor
Weight approx. 8200lbs - Overall Dimensions Approx. 44" L-R x 51" F-B x 92" H (Machine)
31" L-R x 31" F-B x 90" H (Control)
