40"/48" x 200" birmingham engine lathe, mdl. dl-40

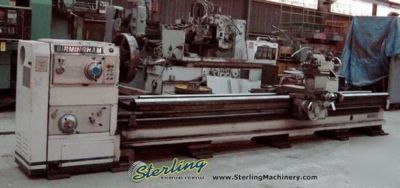

ONE Preowned BIRMINGHAM Engine Lathe
CAPACITY .. . 40"/48" X 200"
SWING OVER BED 40"
SWING IN GAP 48"
SWING OVER CROSS SLIDE . 28"
DISTANCE BETWEEN CENTERS .. 200"
SPINDLE SPEEDS (18) . 7.5 - 1,000 RPM
SPINDLE NOSE .. D1 - 11
HOLE THRU SPINDLE .. 5 1/8"
INCH (73) .. 1/16 - 32 TPI
METRIC (57) . 1 - 256 MM
LONGITUDINAL (64) 0.002" - 0.96"
CROSS (64) 0.001" - 0.48"
LONGITUDINAL RAPID TRAVERSE . 149 IPM
CROSS SLIDE RAPID TRAVERSE 74 1/2 IPM
CROSS SLIDE TRAVEL 20"
TOP SLIDE TRAVEL .. 7 3/4"
TAILSTOCK QUILL TAPER .. #5 MT
TAILSTOCK QUILL TRAVEL 9 1/2"
DIMENSIONS (L X D X H) . 300" X 70" X 80"
WEIGHT . 15,000 LBS
MOTOR ... 20 HP
RAPID TRAVERSE ON CARRIAGE AND CROSS SLIDE
PRICE: ON SITE, (WICHITA, KS) ... . $29,500.00
