> Powermatic 1791282 osc edge sander free shipping

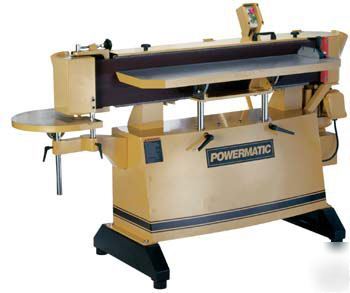

Powermatic 1791282 osc edge sander free shipping
1791282 - "Model OES9138, 3HP, 1Ph, 230V"
The new oscillating edge sander from Powermatic is full of features to handle all your edge sanding needs.
The large 11 3 /4" x 48" table travels a full 8" in vertical height to accommodate all parts from tall to small. It will also tilt neg. 5 degrees and out to pos. 45 degrees for all the angles you need to run.
The cast iron platen is a generous 48" x 9 1 /2" and covered with graphite for production sanding offering super support and cooler running toextend belt life. With 24 oscilla-tions per minute you can use the entire belt face without burning.
A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with 2 sealed ball bearings for trouble-free performance.
3HP motor with 9" x 138 3 /4" abrasive belt
Power to handle the largest work pieces
Oscillates 24 cycles per minute
Keeps belt cleaner for longer abrasive life and better finish
9" x 48" platen with graphite pad
Gives the largest work surface
Keeps work area clean and extends
Supports the largest work pieces
at a comfortable work height and
accommodates virtually any angle
Big 18" radius end worktable has 6" vertical travel and tilts neg. 40 to pos. 45 degrees
Allows for any angle and radius work at the optimum height
Precision balanced 9" diameter drive drum and 4" diameter. Rubber coated idler pulley
Gives positive drive and rigid tracking
Heavy duty oscillating gearbox and shaft
Dual dust collection ports keep the work area clean and extends the life of your abrasive belt.
PN Accy. Sanding Belt (1) 60 Grit 9" x 138 3 /4"
PN Accy, Sanding Belt (1) 80 Grit 9" x 138 3 /4"
PN Accy, Sanding Belt (1) 100 Grit 9" x 138 3 /4"
PN Accy, Sanding Belt (1) 120 Grit 9" x 138 3 /4"
PN Accy, Sanding Belt (1) 150 Grit 9" x 138 3 /4"
PN Accy, Sanding Belt (1) 180 Grit 9" x 138 3 /4"
PN Accy, Sanding Belt (1) 220 Grit 9" x 138 3 /4"
Must Be To A Terminal Or Business With An Unloading Dock Or Forklift.
Residential Delivery's with liftgate are 100.00 Extra
Call Wes Or Cutter For The Best Deal ( (***)-996-2422 )
