New invertek optidrive E2 ode-2-12020-3H012 3 phase
Invertek Optidrive E2 ODE-2-12020-3H012 3 Phase NEW
Invertek Optidrive E2 ODE-2-12020-3H012 3 Phase NEW

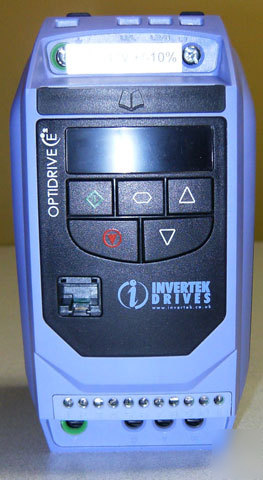

This product is a NEW Invertek Optidrive E2 inverter.
Input: 200-240V+/-10%, 50/60Hz, 3 Phase
Output: 0-250V, 7.0A, 2HP, 3 Phase, 0-500Hz
From the Manufacturer's Website:
Rugged industrial 50 C ambient rating for hot and tough applications
Simple mechanical & electrical installation
Simple operation, powerful features easy to use
Fast setup, factory default settings ok for most applications, only 14 basic parameters
Motor current and rpm indication
Debugging using troubleshooting & P-00
150% overload for 60 secs (175% for 2 secs)
Integral brake chopper (S2 and S3 only)
Modbus RTU serial communications
General purpose economy drive with modbus communication.
Rich in features the Optidrive E2 is the most commercially competitive Optidrive in the Optidrive family.
Innovative and compact the Optidrive E2 range combines good looks with robustness, reliability and easy to use performance.
Optidrive E2 has only 14 standard parameters to adjust in its basic form, thus Optidrive's legendary ease of use could not be easier or quicker to get started with.
