> Metrohm 672 titroprocessor / karl fischer titration
Metrohm 672 titroprocessor / karl fischer titration
Metrohm 672 Titroprocessor / Karl Fischer Titration / Titrator / Brinkman

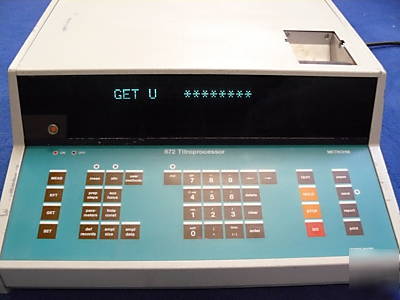

Metrohm Titroprocessor 672 with integrated Printer
Technical Data for Metrohm Titroprocessor 672
pH pH = 0.00 ... 14.00 (pX = -20.00 ... +20.00)
Voltage U = -2000 ... 0 .. +2000 mV
Temperature temp = -20,0...0...+200,0 C temp = 0 .. -20.0 ... +200.0 C
Ambient temperature typ 20 V / K
Ambient temperature typ 0.002 C / K
Input resistance approximately 10 13
Offset Current approximately 3 x 10 -13 A
Series 50 Hz suppression 89 dB
Polarization current 50 mA (changeable)
Display Vacuum fluorescent display, 16 points, 5 x 7 dot matrix
Printers Thermal printer, 24 characters per line, 5 x 7 dot matrix
Power S about 50 VA (with a current printer)
W x H x D 365 mm x 147 mm X 455 mm
