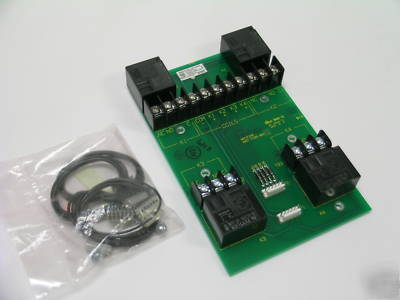

Fire-lite firelite arm-4 auxillary relay module 4
The ARM-4 Auxiliary Relay Module is used for high power
switching and may be slaved to a CRM-4 or CRE-4 module.
The ARM-4 module can be used when greater load switching
capability is required. The ARM-4 is slaved to a CRM-4
The ARM-4 consists of a printed circuit card which mounts
on the bottom of the CHS-4 chassis
The ARM-4 is mounted on the rear of the CHS-4 chassis
(adjacent to the controlling CRM-4/CRE-4), and may be
located under a IZM-8 or AIM-200 (System 5000 only),
ICM-4, or CRM-4 (with or without expanders
