> Stellex yig osc. + synthesizer + cable 8.25 -10.25 ghz
Stellex yig osc. + synthesizer + cable 8.25 -10.25 ghz

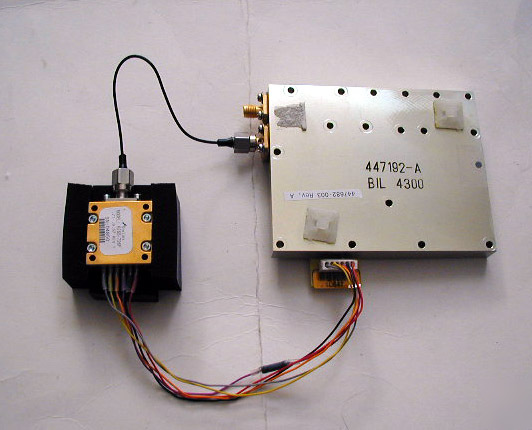

STELLEX YIG OSC. + Synthesizer + Cable 8.25 -10.25 GHz Tunable
Without tuning current the typical output frequency is 9.1 GHz.
The YIG and PLL board combine to give you a signal from just over 8.25 GHz to about 10.25 GHz with a level of around +13dBm. The PLL controller contains a 10MHz reference and allows the YIG output to be set in precise steps of 1MHz across the 8.25 to 10.25 GHz range.
Please note: The article references the 8-10 GHz YIG version (available in another listing), this YIG is model 6755-735F and
it has a different tuning range.
