> Linear tech LTC1775CS high power step down dc/dc, so-16

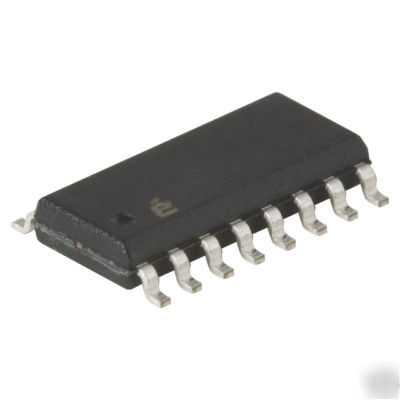

Linear tech LTC1775CS high power step down dc/dc, so-16
This is one piece of New Linear Technology High Power No Sense Resistor Current Mode Synchronous Switching Regulator. Part Number: LTC1775CS in SOIC-16 Package.
* Highest Efficiency Current Mode Controller
* No Sense Resistor Required
* 300mV Maximum Current Sense Voltage
* Stable High Current Operation
* Dual N-Channel MOSFET Synchronous Drive
* Wide VOUT Range: 1.19V to VIN
* Programmable Fixed Frequency with Injection Lock
* Very Low Drop Out Operation: 99% Duty Cycle
* Forced Continuous Mode Control Pin
* Optional Programmable Soft Start
* Pin Selectable Output Voltage
* Logic Controlled Micropower Shutdown: IQ < 30mA
16-Lead Narrow SO Packages
Detail Spec on Web as follows:
http:// /pc/downloadDocument.do?navId=H0,C1,C1003,C1042,C1032,C1092,P1724,D2940
