Acme transformer 75/60 kva 600/480/380 v 75/60KVA 3R y

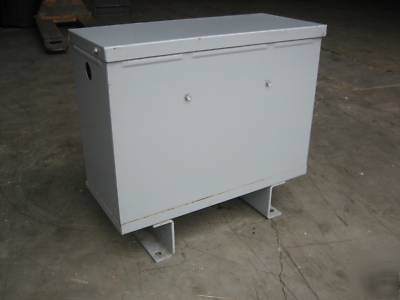

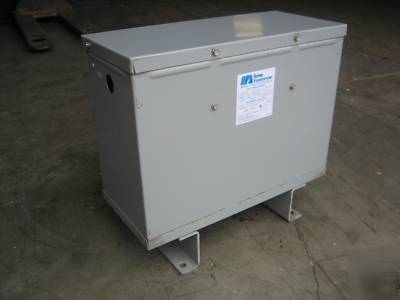

This Transformer is in Very Good Condition Externally and Great Condition Internally. There are Some Cracks in the Top of the Insulation. It Will Not Affect the Transformer's Operation.

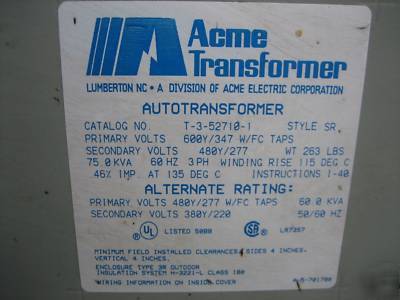

Catalog No: T-3-52710-1 Style SR
Primary Volts: 600Y/347 w/FC taps
Secondary Volts: 480Y/277 Wt: 263
75 kVA 60 Hz 3 Phase Winding Rise 115 C
.46% Imp. at 135 C Instructions I-40
Primary Volts: 480Y/277 w/FC Taps 60 kVA
Secondary Volts: 380Y/220 50/60 Hz.
Insulation System: H-3221-L Class 180
Minimum Field Installed Clearances, Side 4 Inches, Vertical 4 Inches

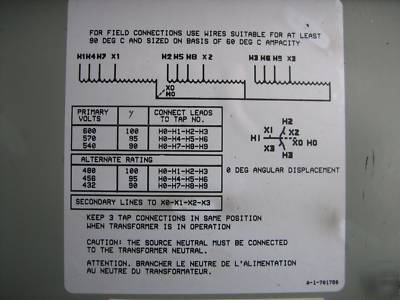

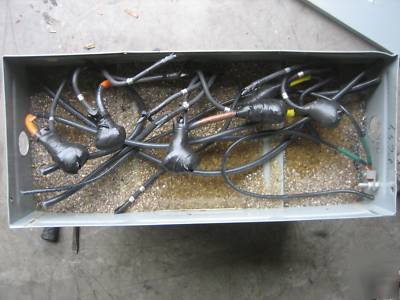

Secondary Lines to X0 X1 X2 X3
Keep 3 Tap Connection in Same Position When Transformer is in Operation
20" (Width) x 9" (Depth) x 19" (Height)
