> #132 thiel"contourex"pnh & electrode shaping mach 23294
#132 thiel"contourex"pnh & electrode shaping mach 23294

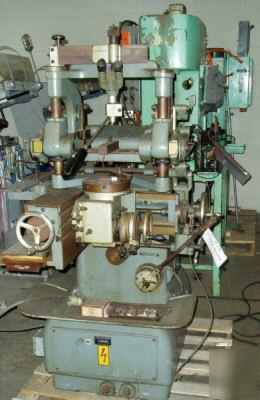

#132 THIEL "CONTOUREX" PUNCH & ELECTRODE SHAPING
Serial No. 1792, Model 132, Series "Contourex"
15 X Dual Eyepiece Microscopic Optics
Dividing Table Diameter................ 8-1/4"
Stroke Length, Range................... 1-9/16" to 4-5/16"
Shaping Length, Maximum................ 4"
Shaping Width, Maximum................. 8-5/8"
Number Of Strokes...................... 56 & 75 SPM
Longitudinal Slide Feeds, Range........ .001 to .008 IPS
Run Out Radius On Base, Maximum........ 1-3/8"
Run Out Radius On Base, Minimum........ 5/64"
Longitudinal Slide Long Traverse....... 11-13/16"
Floor Space Required, L x W............ 4' x 5'
Overall Height......................... 5'5"
Weight Approximately................... 1800 LBS
