> Tescom tc-5901B pneumatic rf shield box 2.5 ghz
Tescom tc-5901B pneumatic rf shield box 2.5 ghz

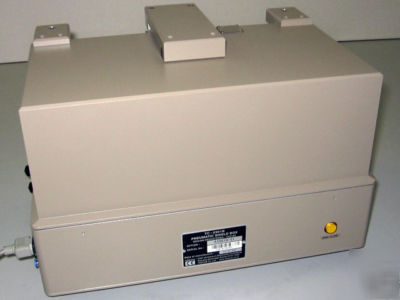

Tescom TC-5901B Pneumatic RF Shield Box
This unit has the following benefits:
* Pneumatic Control for manual or semi-automatic operation of RF
* Shield Box DUT Fixture and lid
* EMI Filters on all data and DC lines
* RS-232C open-close control
* Red and Green LED for the pass/fail indication
* RF Shield Effectiveness: >80dB, DC ~ 2.5GHz
* RF Connectors: 2 Type-N (external), 2 SMA (internal)
* 2 DB9(p) outside and DB9(s) inside, 1000pF Pi filter
* DB25(p) outside and DB25(s) inside, 1000pF Pi filter
* DB9(p) outside and DB9(s) inside, for LAN or USB 1.1, 100pF Pi filter
* Data Line Capacity: 100 VDC, 3A Max
* Remote Control: RS232, 3 Wire, 9 pin D Type connector
* Compressed Air Requirement: 5 to 10 Bar
* Compressed Airline Connector: Sang-A PMM06, 6 mm push on fitting
* Air Connector Between fixture and main body: 4 mm push on fitting
* Line Voltage: Universal 100 to 240 VAC, 50/60 Hz, 16 watt
* Working Space: 408(W) x 218(D) x 135(H) mm
* Dimensions: 459(W) x 300(D) x 302(H) mm, Lid Closed. 449(H) mm, Lid Open
* Weight without Accessories: 20 kg
This unit has been tested by an onstaff engineer and it is full functional and in excellent physical condition. It comes with a 14 Day Guarantee against DOA from receipt.
