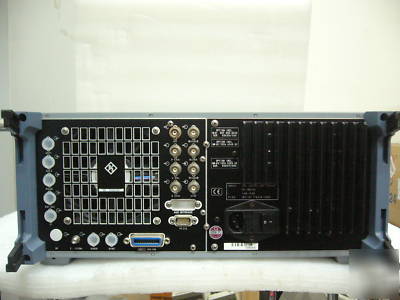

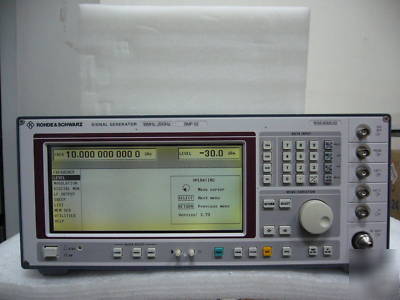

Rohde & schwarz SMP02 microwave signal generator
This item is tested, good condition. no accessories. It is with opt.B1/B11/B15.
Instrument family with three models
* R&S SMP02 (10 MHz to 20 GHz)
* R&S SMP03 (10 MHz to 30 GHz)
* R&S SMP04 (10 MHz to 40 GHz)
Spectral purity is one of the most important parameters for many applications. The R&S SMP family has an SSB phase noise of typical -109 dBc (1 Hz) at f = 10 GHz and 10 kHz offset.
A classical field of application for microwave generators is the testing of radar receivers. Each R&S SMP has a precise pulse modulator built in by default. Optionally, leveled pulses down to a pulse width of 20 ns are possible.
In addition to conventional CW capabilities, the R&S SMP family also supports classical analog modulation without any restrictions. The basic unit includes not only AM, FM and SCAN, but the digital modulation types ASK and FSK as well. The different modulations can also be combined to create more realistic signals.
The three-year calibration interval reduces costs and increases availability.
