> New vat 010 mini uhv gate valve 2-3/4" conflat flanges
New vat 010 mini uhv gate valve 2-3/4" conflat flanges

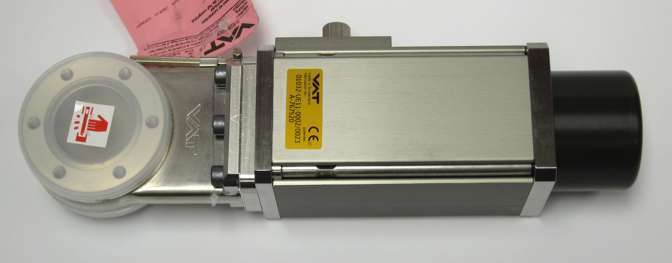

This is a NEW VAT Series 010 "Mini UHV" stainless steel gate valve with 2-3/4" Conflat flanges, in an air-to-open, spring-to-close configuration.
This valve came to us in the opened plastic bag as shown in the first picture, with VAT protective caps in place on the flanges. It appears to be in immaculate condition, including flange sealing surfaces. The port where compressed air would be introduced does not appear to ever have had a fitting installed. We find no clues that would indicate that this valve has ever been installed on a system.
Note that this valve uses a strong spring to effect gate closure, so it can close and seal reliably even in the event that compressed air is completely lost
The MONOVAT style of gate seal allows this valve to be very compact compared to other designs; flange-to-flange distance is only 1.38" (35 mm).
* 2-3/4" Conflat-style flanges
* flanges have UNF tapped holes (1/4-28 thread)
* Viton MONOVAT style gate seal
* single acting pneumatic cylinder with closing spring (air-to-open, spring-to-close, normally closed)
* visual position indication
More detailed specifications for this valve are available from the VAT web site. If such information is of interest to you, and you have difficulty locating it, then please contact us for assistance.
Click on any picture below to view a larger, higher-resolution version.
