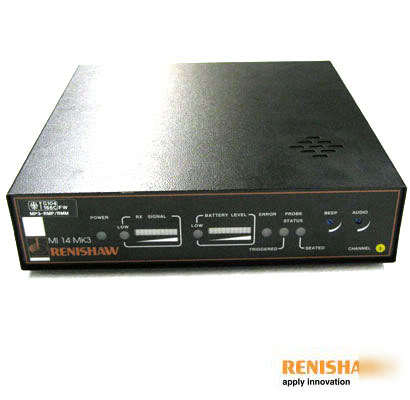

Renishaw MI 14 MK3 Probe Receiver
The probe is stored in the machine tool changer and is transferred to the machine spindle as any tool in the system. The probe acts as an omni-directional switch and is effective in the X, Y and +Z directions. As the stylus comes into contact with a workpiece the RMP generates an electro-magnetic signal. The signal is received by the RMM receiver antenna which passes the signal via a coaxial cable to the MI 14 Interface. The MI 14 then decodes the signal and produces a corresponding signal in a solid state relay format for the CNC machine control.
The MI 14 converts the signals received by the RMM into an acceptable form for the machine
control. It also continuously monitors system status, including received signal strength, battery
level and probe status. The data is displayed visually on the front panel. In addition there are
audio indicators to aid installation and diagnostics.
* Three pairs of reed relay outputs rated @500mA, 100V max: error, low battery, buzzer.
* Two pairs of probe status, solid state relay outputs rated @ 50mA, 50V peak.
* Probe Status relays change state both when the probe is triggered and re-seated.
Unit is in Good operating condition.
* ORIGIN: Chatsworth, CA 91311
