> New 1†ashton air diaphragm pump (316 st.steel/ptfe)
New 1†ashton air diaphragm pump (316 st.steel/ptfe)

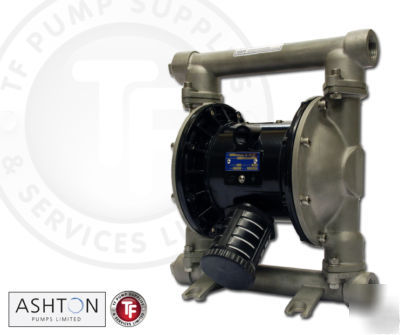

This is a Brand New 1 Ashton air driven double diaphragm pump.
Body Construction in 316 STAINLESS STEEL c/w PTFE Diaphragms, Valve Balls & Viton seals.
Maximum Free Flow - Water: 151 lpm (40 US Gpm)
Maximum Working Pressure: 8.4 Barg (120 Psig)
Inlet/Outlet Port Size/Standard: 1 Inch NPT/BSP Female
Air Inlet Size: 1/2 Inch NPT/BSP Female
Maximum Air Consumption: 1.7 m3/min (60 scfm)
Maximum Dry Suction Lift - Water: 5.5 metres (18 Feet)
Maximum Partical Size: 3.2 mm (1/8 Inch)
Approximate Dissplacement/Stroke: 0.57 Litres (0.15 US Gallons)
Typical Sound Level at 4.9 Bar (70 Psi): 76 dBa
Typical Working Temperature Limits: 5 - 100 0C
Weight - Aluminium Construction: 8.2 Kg (18 lbs)
Weight - 304 & 316 St.St Construction: 15 Kg (33 lbs)
ATEX CERTIFIED FOR FLAMMABLE ENVIROMENTS.
