> (MSR206/mse-630A)magnetic card reader/writer encoder
(MSR206/mse-630A)magnetic card reader/writer encoder
If you need to read and write magnetic strips, this versatile machine works with both HiCo/LoCo (high coercivity and low coercivity) strips, reads and writes up to 3 tracks of data in 1 swipe and has a massive life span.
* MSE750 dual platform (fully compatible with the applications MSR206/MSE-630A)
* Reads and writes tracks 1, 2 and 3
* HiCo and LoCo configurable
* Withstands one million swipes for both read and write heads
* Compliant with ISO 7811-1/2/3/4/5 and ANSI 4.16 1983
* Custom data format - 5/6/7 BPC 210/75 BPI on any track
* Has a MTBF (mean time between failures) of 95,000 hours
* Intuitive encoding utility
* Tough and hardwearing ABS casing
If you're a Value Added Reseller or system integrator, this commercial grade reader/writer is ideal for you.
* Media life: 1,000,000 passes for both read and write heads
* Media speed: 5 ~ 50IPS (read), 5 ~ 30IPS (write)
* Media coercivity: 300 ~ 4000 Oersted (read), 300 ~ 4000 Oersted (write)
* Media thickness: 0.25 ~ 2.03mm (0.010 ~ 0.080")
* Low amplitude reading: 30% (21 BPI) or 40% (75 BPI) at 10 ~ 40IPS
* Error rate: <0.5% (read), <0.75% (write)
* Power supply: 100 ~ 240VAC/24VDC 2.5A
* Current consumption: 350mA (reading), 600mA (writing)
* Swipe: manual, unidirectional
* Operating temperature: 0 C ~ 40 C
* Operating humidity: 20% ~ 90% RH, non-condensing
* Storage temperature: -20 C ~ 70 C
* Storage humidity: 20% ~ 90% RH, non-condensing
* Dimensions: 214.5 x 64 x 66.5mm (8.4 x 2.52 x 2.62")

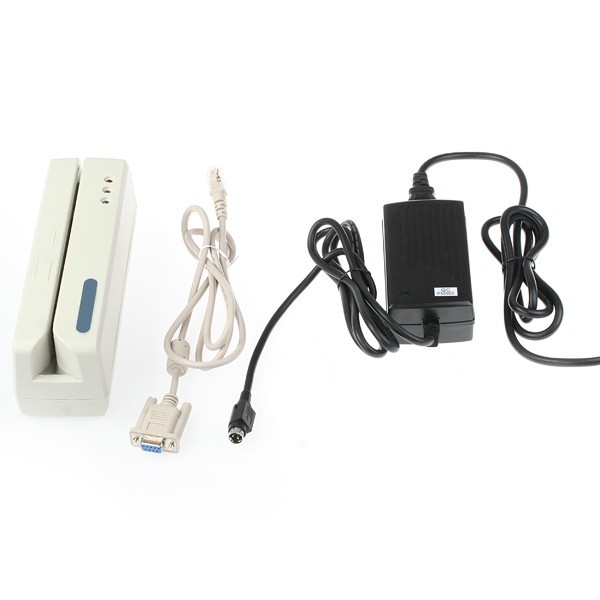

The commercial grade HiCo/LoCo magnetic card reader writer is brand new and boxed and includes power supply and RS232 cable
