12" x 102" lees-bradner thread mill #25088

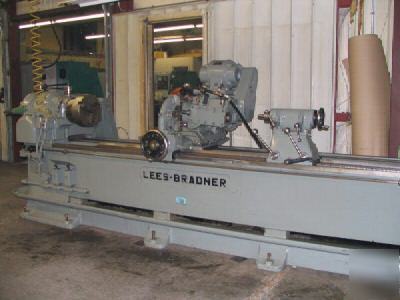

12" x 102" LEES-BRADNER THREAD MILL
Serial No HT1224 Model HT12X102,
Hole Thru Spindle........................ 6"
Swing Over Bed Ways...................... 24"
Swing Over Cutter-Carriage............... 12"
Work Diameter, Maximum................... 12"
Distance Between Centers................. 102"
Maximum O.D., Single Thread Cutter....... 7"
Maximum O.D., Hob Type Cutter............ 3.5"
Root Diameter of Cutter, Minimum......... 2.875"
Spindle to Cutter Swivel Head, Minimum... .25"
Spindle to Cutter Swivel Head, Maximum... 103"
Cutter Spindle Speeds, Range............. 50 to 200 RPM
Worm & Wheel Drive, Leads Generated:
Minimum.................................. .06"
Maximum.................................. 60"
Spur Gear Drive, Leads Generated:
Minimum.................................. .03"
Maximum.................................. 1"
Floor Space Required, L x D.............. 13' x 4'1"
Weight, Approximately.................... 10000 LBS
PRICE: F.O.B. OUR WAREHOUSE............. $24,500.00
