> Hp 16702A logic analyzer w/16715A 667MHZ module

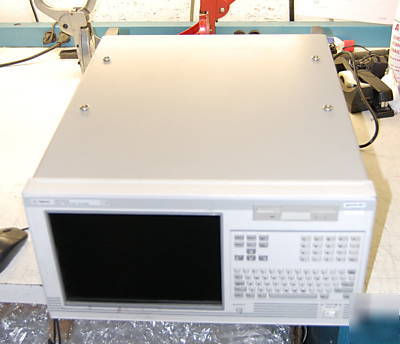

Hp 16702A logic analyzer w/16715A 667MHZ module
The HP/Agilent 16702A Logic Analyzer System Mainframe offers a single solution for hardware, software and systems debugging. The flexible and intuitive user interface of the 16702A provides you with with the familiarity of windows and the ability to control the analyzer directly from the table menus without searching through several pop-up menus. Debugging is simplified by providing:
* Easy connection to your target and measurement setup using the setup assistant
* Insight into signal integrity problems with the improved full-function oscilloscope interface
* Quick access to the most commonly used features with menu tabs
* Ability to size and position windows on the built-in flat screen monitor to suit your troubleshooting process

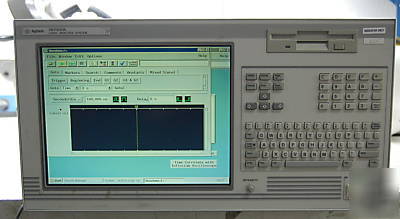

* Built-in 10.3 inch 800 x 600 display and front panel keyboard
* 4 GHz timing and 2 GHz scope options
* Scalable solution with simultaneous measurements on up to 1,020 channels
* Small footprint allows for use in limited space environments, or where transportability is required
* Integrated emulation capabilities and a windowed interface
5 (10 with HP 16701A Expansion Frame)
Number of Emulation Module Slots
2 (4 with HP 16701A Expansion Frame)
1280 x 1024 std., 1600 x 1200 opt. 003, or remote via Web browser or X-windows
115/230 V, 48 to 66 Hz, 610 W max

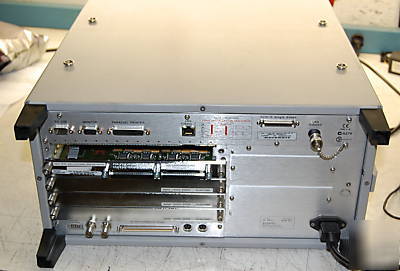

RS-232, Monitor, Parallel Port, LAN 10Base-T, SCSI-2 Single Ended, LAN 10 Base2, five slots for Measurement Modules, two slots for Emulation Modules, Target Control Port, Port IN, Port OUT, Expansion Frame cable connector, keyboard, mouse
167 MHz state, 667 MHz timing, 2/4 M memory depth
