> Pipe adapter 1" quick-clamp to 1/2" npt 4759K89

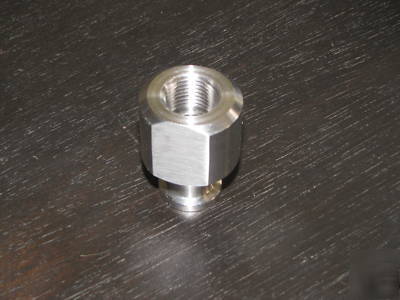

Pipe adapter 1" quick-clamp to 1/2" npt 4759K89

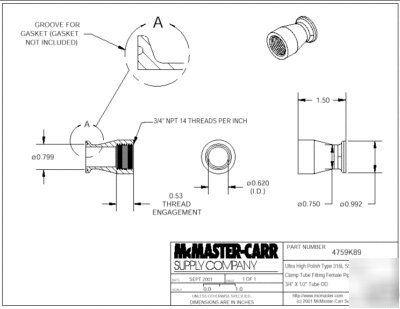

NOTE: ERROR IN DRAWING (PICTURE 2) THREADS ARE 1/2" NPT NOT 3/4"
Determined by the gasket material used in the connection. Buna-N: -30 to +200 F. PTFE: -100 to +500 F. Fluoroelastomer: -20 to +400 F.
Determined by the type of clamp used in the connection. For pharmaceutical-grade clamps, maximum pressure is 870 psi.
Ultra-High-Polish Type 316/316L Stainless Steel Tubing
Air, Deionized Water, Hydraulic Oil, Water
Chemicals, Steam (Autoclaving)
For a complete connection, you'll need a clamp, gasket, and two fittings or adapters.
Buna-N: 4509K12. PTFE: 43315K22. Fluoroelastomer: 5044K12.
