> Pelco ^ DF8A-10 8" fixed mount camera dome backbox

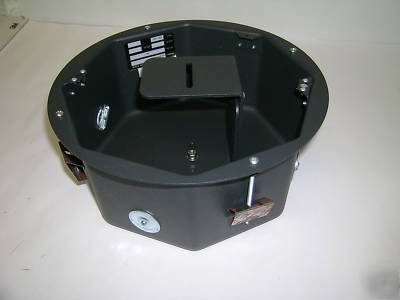

Pelco ^ DF8A-10 8" fixed mount camera dome backbox

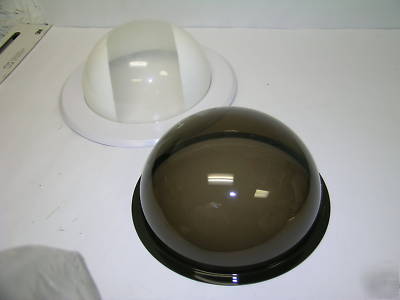

CONDITION: OPEN BOX- TEH WINDOW WHERE THE CAMERA WILL LOOK THROUGH IS PRETTY SCUFFED AND WE BELIEVE IT WILL EFFECT THE QUALITY OF PICTURE-WE ARE INCLUDING A BROZE DOME AS WELL WHICH CAN BE SWITCHED OUT
Pelco DF8A-0 Camera Fixed Dome Mount
The Pelco DF8A-0 is a opaque black, smoked window, 0.7 F-stop light loss bubble, fixed mount dome that is quick and easy to install and can be used in a variety of indoor/outdoor applications.
The Pelco DF8 Series are 8-inch, fixed mount domes that are quick and easy to install and can be used in a variety of indoor/outdoor applications. The versatile fixed camera mount allows for 360-degree horizontal positioning and will accommodate a camera and lens up to nine inches (22.86 cm) in length when tilted 30 degrees downward. The lower dome, which is 8.5 inches (21.59 cm) in diameter, is easily removed for quick access to the camera. The in-ceiling models can be installed in hard ceilings or standard 2' x 2' (61 x 61 cm) suspended ceilings. This compact dome requires as little as 5.2 inches (13.2 cm) of overhead space above the ceiling for installation. The back box is formed aluminum construction and is plenum rated. Multiple cable hole plugs are positioned in the top and sides of the back box and can be removed to allow cable to be run from any direction. The DF8 Series feature an acrylic bubble which is available in six types: smoked bronze (in-ceiling model only), black opaque with smoked window, black opaque with clear window, chrome, gold, and white with clear window (in-ceiling model only).
