> Nsk nakanishi ma series 90° h torque air motor am-300RA
Nsk nakanishi ma series 90° h torque air motor am-300RA
Nsk Nakanishi MA Series 90 H Torque Air Motor AM-300RA

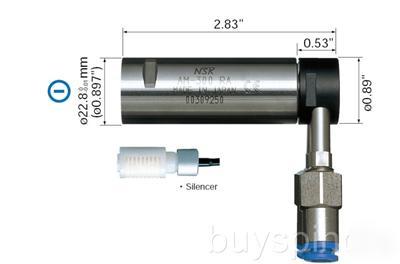

ULTRA-PRECISION SMALL DIAMETER 0.897"( 22.8 mm) 90 ANGLE HIGH-TORQUE AIR MOTOR AM-300RA (Forward Rotation)
Small diameter 0.897"( 22.8 mm).
Outside housing is made of stainless steel (SUS416).
MA Series consists of 3 kinds of air motors, AM-300 {30,000 min-1(rpm), 57W}, AM-310 {30,000 min-1(rpm), MA Series Features 108W}, AM-600 {58,000 min-1(rpm), 76W}, enabling a wide variety of operations by the combination of various kinds of spindles. Higher torque is provided by connecting speed reducers.
-AM-300RA Air Motor; Hose (K-215) : 6 mm x 6 ft Hose (K-216) : 8 mm x 3 ft Silencer (K-208) Wrench (20 x 24) : 1 pc...
AM-300RA Air Motor Specifications
Air hose is attached on the rear end of air motor at 90 angle which decreases the installation space.
Motor Speed 30,000 min-1(rpm) (56PSI)
Hose Diameter Air Intake I.D. 4.0 mm x O.D. 6.0 mm
Exhaust Air I.D. 5.5 mm x O.D. 8.0 mm
Five different motors are available as follows (optional) : 30,000 min-1(rpm) (57W), 30,000 min-1(rpm) (high torque type 108W), 58,000 min-1(rpm) (76W) all with 0.897"
( 22.8 mm) O.D., and 24,000 min-1(rpm) (130W) is available with 1.0"( 25.4 mm), 0.98"( 25 mm) O.D. motors. Select the motor most suitable for your application.
When MA Series is used at low motor speed, a speed reducer (ARG-01, or other selections) is added in order to obtain the speed of your choice.
