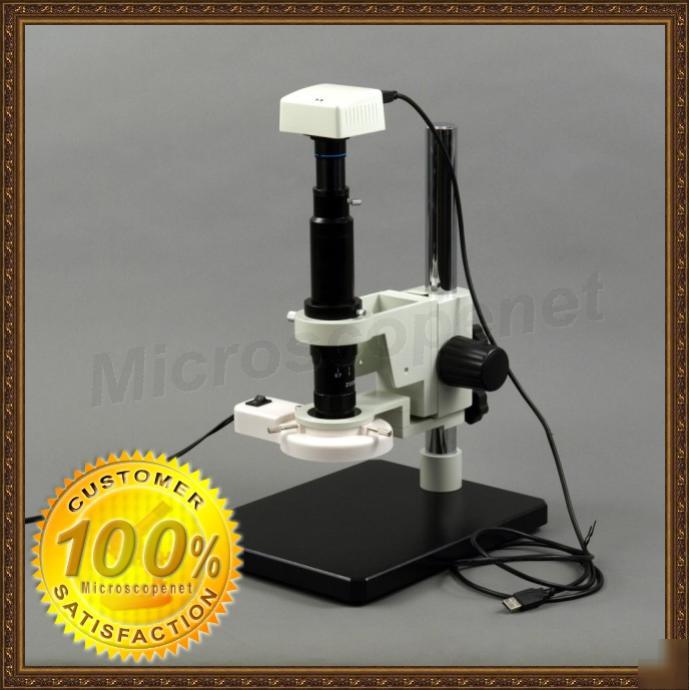

Inspect zoom microscope 7X~90X 1.3MP camera 54 led lite
Zoom 7x~90x with 1.3MP USB Digital Camera
* Height adjustable holder ready for attaching ring light
* 1280x1024 (1.3MP) high resolution digital camera with built-in 0.5x reduction lens to get larger field of view
* High speed USB 2.0 connection with computers. Compatible with Windows 2000/XP/Vista32. Advanced software applications included
* Long lifetime cold 54 LED illumination with extra metal 48mm thread ring light adapter
* Eyepieces: wide field WF10X/18 & WF20X
* Working distance: 3-1/2" (90mm)
* Ring light holder diameter: 56mm (smallest part of the dovetail shaped ring)
* Rack & pinion focusing adjustment stroke: 54mm
* Pillar height: 13-3/4" (35cm)
* Easy to attach 35mm~35.5mm add-on 0.3x or 0.5x auxiliary objective lens for enlarge field of view and increase working distance
* High resolution digital camera: color 1280x1024 pixels. Built-in 0.5x reduction lens
* Platform compatiblity of camera: Windows 2000, XP, Vista 32-bit (not Vista 64-bit)
* Dimensions: 8-5/8" x 11-1/8" x 15-3/8" (22cm x 28.5cm x39cm)
* Net weight: 14 lb 13.5oz (6.7kg)
* Metal stand with ring light holder
* USB 2.0 digital camera 1280x1024 with 0.5x built-in reduction lens with type C standard mount adapter
* Software and driver disc for Windows 2000/XP/ Vista32
* 54 LED ring codl light with 100v-240v power adapter
* C-mount adapter for industrial standard CCD cameras
* 23.2mm adapter for standard microscope eyepieces
* 0.3x auxiliary objective lens - 35mm~35.5mm
* 0.5x auxiliary objective lens - 35mm~35.5mm
Before you purchase any parts or accessories, please check the Compatibility Table below.
