Druck trx trx-ii unomat documenting process calibrator
FOR SALE IS 1 USED DRUCK TRX-II UNOMAT DOCUMENTING PROCESS CALIBRATOR.
THIS CAME FROM A WORKING FACTORY.
POWERS UP FINE AND ALL BUTTONS OPERATE GOOD.
COMES WITH CASE, MANUEL, QUICK REFERENCE CARD AND TEST LEADS.
INSTRUMENT WILL BE GUARANTEED TO WORK AND PLEASE SEND ANY QUESTIONS YOU MAY HAVE.
PLEASE SEE INTERNET FOR MORE SPECS.

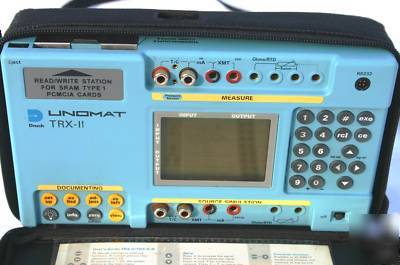

The Druck TRX-II Calibrators is a self-contained, battery
powered package that simulates and measures RTD s,
thermocouples and resistance, as well as sourcing and
reading milliamps, millivolts, volts and frequency. The rugged
design includes an impact resistant enclosure which is fastened
to the carrying case for convenience and safety. Dedicated
alphanumeric and documenting keypads surround a large LCD
panel with dual readout and backlight
* Simulate & Read 9 RTD's & 12 Thermocouple Types
* Source & Measure mV, mA, Volts, Ohms, Hz, Pulses
* Measure Pressure with Optional Modules
* Reads Pressure from Vacuum to 10,000 PSIG
* Dual Display: Source & Measure
* Data Storage for Field Calibrations (1 or 2 MB)
* Data Transfer Via RS-232 or PCMIA Cards
* 0.01% of Reading Typical Accuracy
* 0.05% Accuracy for Pressure Readings
* Handles Gauge, Differential or Gauge Pressure
-14.7 to 10,000 PSI; +/-0.05% FS
-10-100 mV, +/-0.015% Accuracy
9 RTDS; Pt, Ni, Cu; +/-0.6 F Avg.
12 T/Cs; J, L, K, T, U, B, R, S, E, N, C, D, +/-0.6 F Avg.
5 Digits Plus Sign on All Ranges
English, French, Spanish, Italian, German, Portuguese
2.6 x 1.6 Graphic LCD, Backlight
4 x 1.5 V C Cells or 4 x 1.2V NiCads
2.65 Pounds, 8.25" x 4.75" x 2"
